It is well-known that a sentiment analysis model determines whether a text is positive, negative, or neutral. However, this process typically requires access to unencrypted text, which can pose privacy concerns.

Homomorphic encryption is a type of encryption that allows for computation on encrypted data without needing to decrypt it first. This makes it well-suited for applications where user's personal and potentially sensitive data is at risk (e.g. sentiment analysis of private messages).

This blog post uses the Concrete-ML library, allowing data scientists to use machine learning models in fully homomorphic encryption (FHE) settings without any prior knowledge of cryptography. We provide a practical tutorial on how to use the library to build a sentiment analysis model on encrypted data.

The post covers:

transformers
how to use transformers with XGBoost to perform sentiment analysis
how to do the training
how to use Concrete-ML to turn predictions into predictions over encrypted data
how to deploy to the cloud using a client/server protocol

Last but not least, we’ll finish with a complete demo over Hugging Face Spaces to show this functionality in action.

Setup the environment

First make sure your pip and setuptools are up to date by running:

pip install -U pip setuptools

Now we can install all the required libraries for the this blog with the following command.

pip install concrete-ml transformers datasets

Using a public dataset

The dataset we use in this notebook can be found here.

To represent the text for sentiment analysis, we chose to use a transformer hidden representation as it yields high accuracy for the final model in a very efficient way. For a comparison of this representation set against a more common procedure like the TF-IDF approach, please see this full notebook.

We can start by opening the dataset and visualize some statistics.

from datasets import load_datasets
train = load_dataset("osanseviero/twitter-airline-sentiment")["train"].to_pandas()
text_X = train['text']
y = train['airline_sentiment']
y = y.replace(['negative', 'neutral', 'positive'], [0, 1, 2])
pos_ratio = y.value_counts()[2] / y.value_counts().sum()
neg_ratio = y.value_counts()[0] / y.value_counts().sum()
neutral_ratio = y.value_counts()[1] / y.value_counts().sum()
print(f'Proportion of positive examples: {round(pos_ratio * 100, 2)}%')
print(f'Proportion of negative examples: {round(neg_ratio * 100, 2)}%')
print(f'Proportion of neutral examples: {round(neutral_ratio * 100, 2)}%')

The output, then, looks like this:

Proportion of positive examples: 16.14%
Proportion of negative examples: 62.69%
Proportion of neutral examples: 21.17%

The ratio of positive and neutral examples is rather similar, though we have significantly more negative examples. Let’s keep this in mind to select the final evaluation metric.

Now we can split our dataset into training and test sets. We will use a seed for this code to ensure it is perfectly reproducible.

from sklearn.model_selection import train_test_split
text_X_train, text_X_test, y_train, y_test = train_test_split(text_X, y,
    test_size=0.1, random_state=42)

Text representation using a transformer

Transformers are neural networks often trained to predict the next words to appear in a text (this task is commonly called self-supervised learning). They can also be fine-tuned on some specific subtasks such that they specialize and get better results on a given problem.

They are powerful tools for all kinds of Natural Language Processing tasks. In fact, we can leverage their representation for any text and feed it to a more FHE-friendly machine-learning model for classification. In this notebook, we will use XGBoost.

We start by importing the requirements for transformers. Here, we use the popular library from Hugging Face to get a transformer quickly.

The model we have chosen is a BERT transformer, fine-tuned on the Stanford Sentiment Treebank dataset.

import torch
from transformers import AutoModelForSequenceClassification, AutoTokenizer
device = "cuda:0" if torch.cuda.is_available() else "cpu"
# Load the tokenizer (converts text to tokens)
tokenizer = AutoTokenizer.from_pretrained("cardiffnlp/twitter-roberta-base-sentiment-latest")

# Load the pre-trained model
transformer_model = AutoModelForSequenceClassification.from_pretrained(
   "cardiffnlp/twitter-roberta-base-sentiment-latest"
)

This should download the model, which is now ready to be used.

Using the hidden representation for some text can be tricky at first, mainly because we could tackle this with many different approaches. Below is the approach we chose.

The result is a matrix of shape (number of examples, hidden size). The hidden size is the number of dimensions in the hidden representation. For BERT, the hidden size is 768. The hidden representation is a vector of numbers that represents the text that can be used for many different tasks. In this case, we will use it for classification with XGBoost afterwards.

import numpy as np
import tqdm
# Function that transforms a list of texts to their representation
# learned by the transformer.
def text_to_tensor(
   list_text_X_train: list,
   transformer_model: AutoModelForSequenceClassification,
   tokenizer: AutoTokenizer,
   device: str,
) -> np.ndarray:
   # Tokenize each text in the list one by one
   tokenized_text_X_train_split = []
   tokenized_text_X_train_split = [
       tokenizer.encode(text_x_train, return_tensors="pt")
       for text_x_train in list_text_X_train
   ]

   # Send the model to the device
   transformer_model = transformer_model.to(device)
   output_hidden_states_list = [None] * len(tokenized_text_X_train_split)

   for i, tokenized_x in enumerate(tqdm.tqdm(tokenized_text_X_train_split)):
       # Pass the tokens through the transformer model and get the hidden states
       # Only keep the last hidden layer state for now
       output_hidden_states = transformer_model(tokenized_x.to(device), output_hidden_states=True)[
           1
       ][-1]
       # Average over the tokens axis to get a representation at the text level.
       output_hidden_states = output_hidden_states.mean(dim=1)
       output_hidden_states = output_hidden_states.detach().cpu().numpy()
       output_hidden_states_list[i] = output_hidden_states

   return np.concatenate(output_hidden_states_list, axis=0)

# Let's vectorize the text using the transformer
list_text_X_train = text_X_train.tolist()
list_text_X_test = text_X_test.tolist()

X_train_transformer = text_to_tensor(list_text_X_train, transformer_model, tokenizer, device)
X_test_transformer = text_to_tensor(list_text_X_test, transformer_model, tokenizer, device)

This transformation of the text (text to transformer representation) would need to be executed on the client machine as the encryption is done over the transformer representation.

Classifying with XGBoost

Now that we have our training and test sets properly built to train a classifier, next comes the training of our FHE model. Here it will be very straightforward, using a hyper-parameter tuning tool such as GridSearch from scikit-learn.

from concrete.ml.sklearn import XGBClassifier
from sklearn.model_selection import GridSearchCV
# Let's build our model
model = XGBClassifier()

# A gridsearch to find the best parameters
parameters = {
    "n_bits": [2, 3],
    "max_depth": [1],
    "n_estimators": [10, 30, 50],
    "n_jobs": [-1],
}

# Now we have a representation for each tweet, we can train a model on these.
grid_search = GridSearchCV(model, parameters, cv=5, n_jobs=1, scoring="accuracy")
grid_search.fit(X_train_transformer, y_train)

# Check the accuracy of the best model
print(f"Best score: {grid_search.best_score_}")

# Check best hyperparameters
print(f"Best parameters: {grid_search.best_params_}")

# Extract best model
best_model = grid_search.best_estimator_

The output is as follows:

Best score: 0.8378111718275654
Best parameters: {'max_depth': 1, 'n_bits': 3, 'n_estimators': 50, 'n_jobs': -1}

Now, let’s see how the model performs on the test set.

from sklearn.metrics import ConfusionMatrixDisplay
# Compute the metrics on the test set
y_pred = best_model.predict(X_test_transformer)
y_proba = best_model.predict_proba(X_test_transformer)

# Compute and plot the confusion matrix
matrix = confusion_matrix(y_test, y_pred)
ConfusionMatrixDisplay(matrix).plot()

# Compute the accuracy
accuracy_transformer_xgboost = np.mean(y_pred == y_test)
print(f"Accuracy: {accuracy_transformer_xgboost:.4f}")

With the following output:

Accuracy: 0.8504

Predicting over encrypted data

Now let’s predict over encrypted text. The idea here is that we will encrypt the representation given by the transformer rather than the raw text itself. In Concrete-ML, you can do this very quickly by setting the parameter execute_in_fhe=True in the predict function. This is just a developer feature (mainly used to check the running time of the FHE model). We will see how we can make this work in a deployment setting a bit further down.

import time
# Compile the model to get the FHE inference engine
# (this may take a few minutes depending on the selected model)
start = time.perf_counter()
best_model.compile(X_train_transformer)
end = time.perf_counter()
print(f"Compilation time: {end - start:.4f} seconds")

# Let's write a custom example and predict in FHE
tested_tweet = ["AirFrance is awesome, almost as much as Zama!"]
X_tested_tweet = text_to_tensor(tested_tweet, transformer_model, tokenizer, device)
clear_proba = best_model.predict_proba(X_tested_tweet)

# Now let's predict with FHE over a single tweet and print the time it takes
start = time.perf_counter()
decrypted_proba = best_model.predict_proba(X_tested_tweet, execute_in_fhe=True)
end = time.perf_counter()
fhe_exec_time = end - start
print(f"FHE inference time: {fhe_exec_time:.4f} seconds")

The output becomes:

Compilation time: 9.3354 seconds
FHE inference time: 4.4085 seconds

A check that the FHE predictions are the same as the clear predictions is also necessary.

print(f"Probabilities from the FHE inference: {decrypted_proba}")
print(f"Probabilities from the clear model: {clear_proba}")

This output reads:

Probabilities from the FHE inference: [[0.08434131 0.05571389 0.8599448 ]]
Probabilities from the clear model: [[0.08434131 0.05571389 0.8599448 ]]

Deployment

At this point, our model is fully trained and compiled, ready to be deployed. In Concrete-ML, you can use a deployment API to do this easily:

# Let's save the model to be pushed to a server later
from concrete.ml.deployment import FHEModelDev
fhe_api = FHEModelDev("sentiment_fhe_model", best_model)
fhe_api.save()

These few lines are enough to export all the files needed for both the client and the server. You can check out the notebook explaining this deployment API in detail here.

Full example in a Hugging Face Space

You can also have a look at the final application on Hugging Face Space. The client app was developed with Gradio while the server runs with Uvicorn and was developed with FastAPI.

The process is as follows:

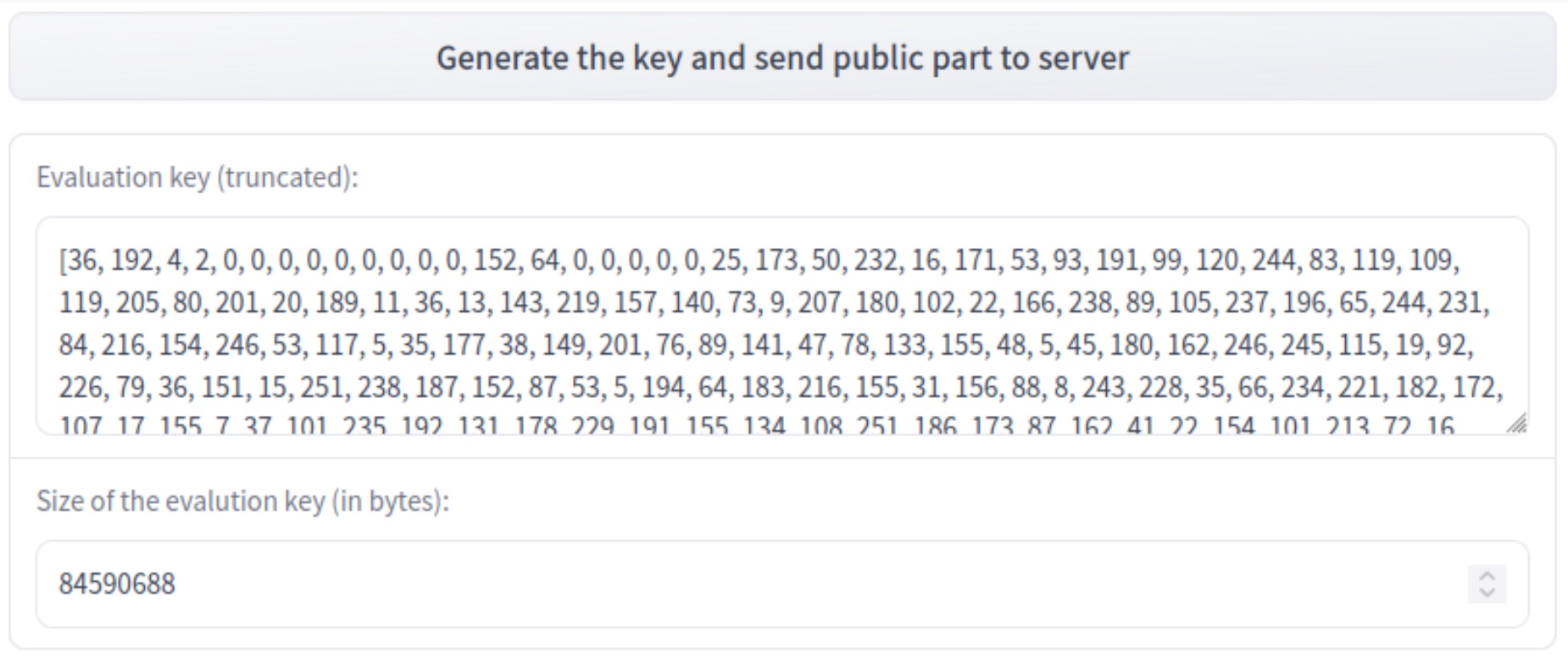

User generates a new private/public key

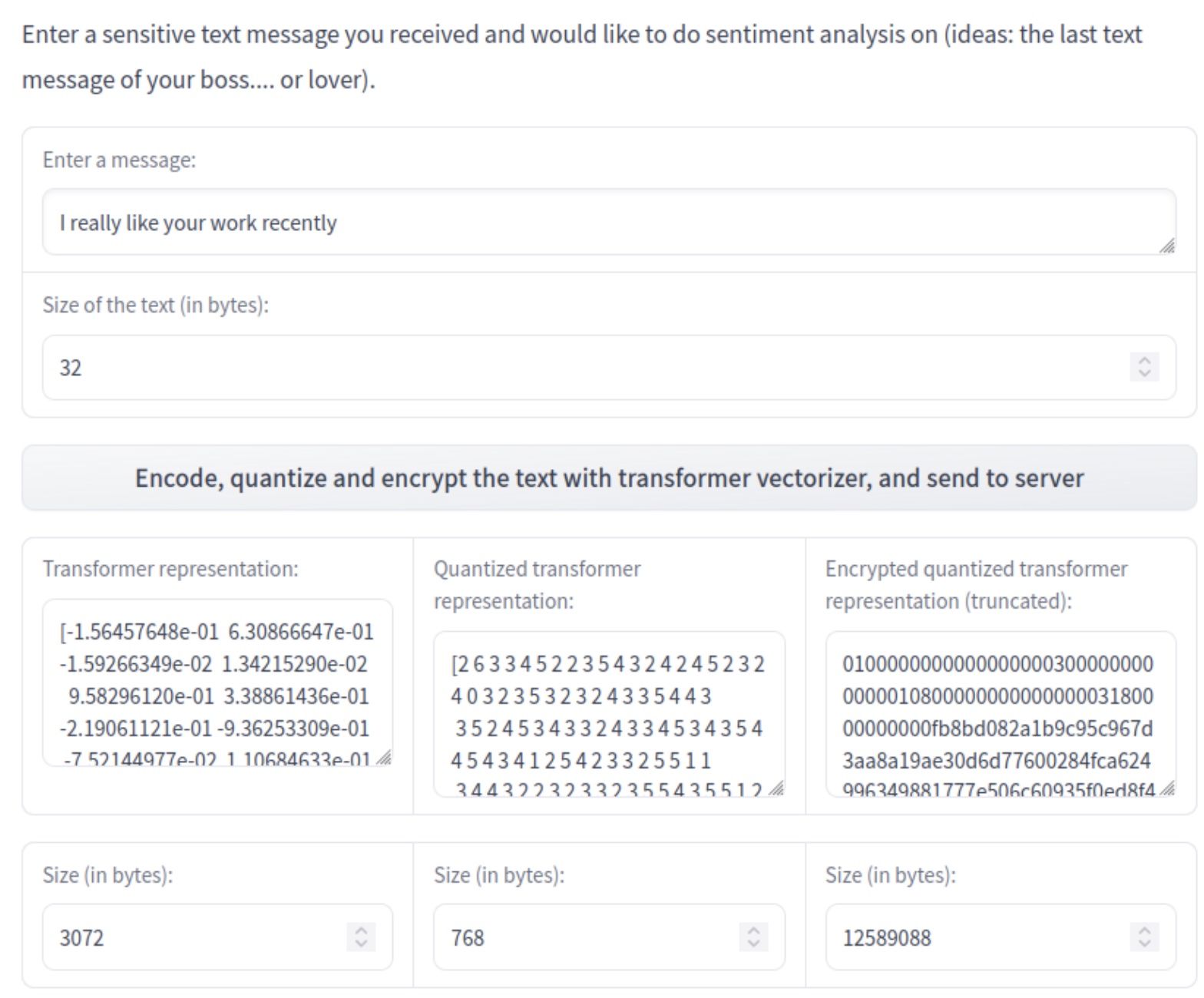

User types a message that will be encoded, quantized, and encrypted

Server receives the encrypted data and starts the prediction over encrypted data, using the public evaluation key

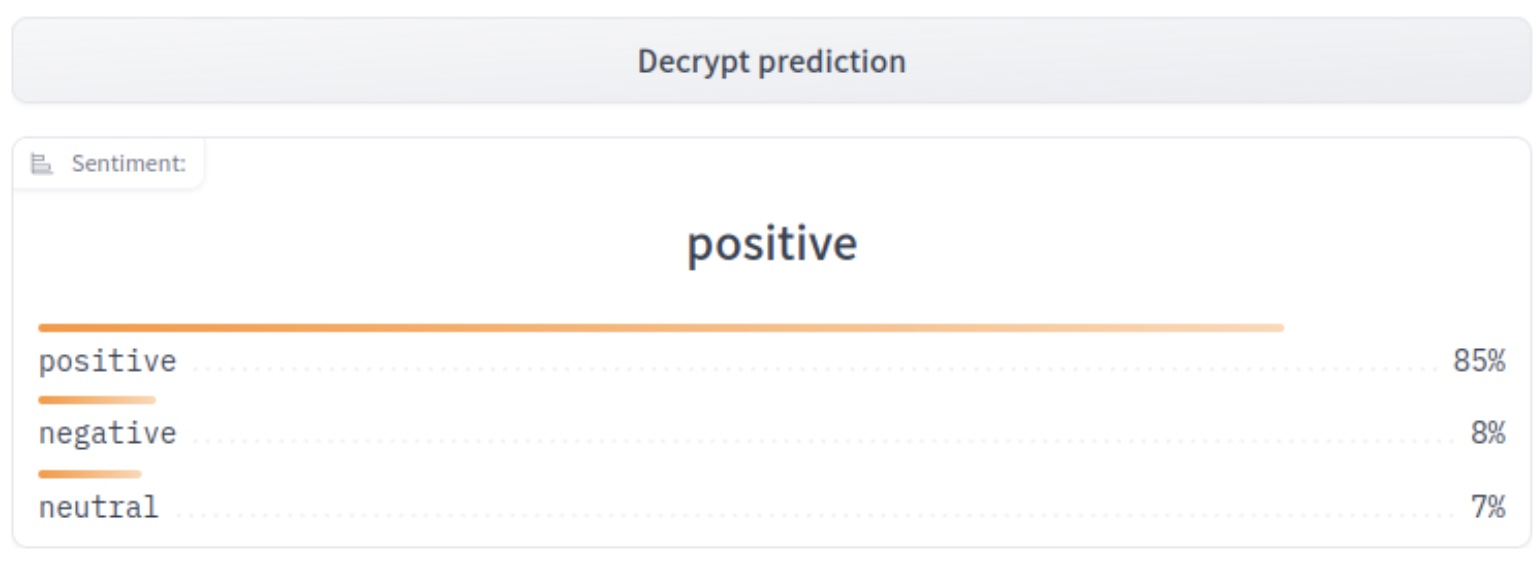

Server sends back the encrypted predictions and the client can decrypt them using his private key

Conclusion

We have presented a way to leverage the power of transformers where the representation is then used to:

train a machine learning model to classify tweets, and
predict over encrypted data using this model with FHE.

The final model (Transformer representation + XGboost) has a final accuracy of 85%, which is above the transformer itself with 80% accuracy (please see this notebook for the comparisons).

The FHE execution time per example is 4.4 seconds on a 16 cores cpu.

The files for deployment are used for a sentiment analysis app that allows a client to request sentiment analysis predictions from a server while keeping its data encrypted all along the chain of communication.

Concrete-ML (Don't forget to star us on Github ⭐️💛) allows straightforward ML model building and conversion to the FHE equivalent to be able to predict over encrypted data.

Hope you enjoyed this post and let us know your thoughts/feedback!

And special thanks to Abubakar Abid for his previous advice on how to build our first Hugging Face Space!
