Model merging has quickly become the de-facto standard of pushing the performance limits of large language models. On the Open LLM Leaderboard, we continue to notice merged models topping up the charts. Our very own Omar Sanseviero, made a little sprint on model merging and discovered interesting findings.

The typical way of model merging, so far, has been to take a set of models and merge them. This post gives a nice primer on this topic. Generally, for merging multiple models, we first download their checkpoints and then perform merging. Depending on the merge algorithm and the sizes of the underlying model, this process can be quite memory-intensive. The mergekit library provides optimized ways for handling this, making the process manageable on limited memory.

But what if we wanted to merge different “adapters” obtained from the same model? You might have four different LoRA checkpoints obtained from the same base model, and you want to experiment with different merging techniques. Eventually, you want to settle with the best merge, giving you the best results for your task. A couple of things become evident when approaching such a developer experience:

• When dealing with adapters such as LoRA, it’s common for users to swap in and out different adapters or even combine them. Adapters can be activated, de-activated, or completely swapped out of the memory. Therefore, we need to do the “merging” part on the fly (as opposed to the method described above) to provide a seamless experience to the users.

• Different adapters might have different requirements for merging. The merging algorithm for LoRA might not equally translate to IA3, for example.

With these aspects in mind, we shipped new merging methods targeting the popular LoRA adapters in 🤗 PEFT. In this post, we want to take you through the methods available, code examples to help you get cracking, impressive results, and our future plans. Let’s get started 🚀

Table of content

• Methods for combining/merging LoRA adapters

• How do I merge my LoRA adapters?

• Extending to text-to-image generation

• Observations

Methods for combining/merging LoRA adapters

Concatenation (cat)

In this method, the LoRA matrices are concatenated. For example, if we have 2 LoRA adapters (A1,B1) (A_1, B_1) and (A2,B2) (A_2, B_2) along with weights weight1 weight_1 and weight2 weight_2 for weighted merging of these two adapters, then the merging happens as follows:

Amerged=concat(weight1∗scaling1∗A1,weight2∗scaling2∗A2,dim=0)A_{merged} = concat(weight_1scaling_1A_1, weight_2scaling_2A_2, dim=0)

Bmerged=concat(B1,B2,dim=1)B_{merged} = concat(B_1, B_2, dim=1)

where shape(Amerged)=(rank1+rank2, d))and(shape(Bmerged)=(d, rank1+rank2) shape(A_{merged}) = (rank_1+rank_2,\ d) )\ and \( shape(B_{merged}) = (d,\ rank_1+rank_2) .

Now, the output of this new merged LoRA layer would be as if the original 2 LoRAs were active with weights weight1weight_1 and weight2weight_2 for applied to the first and second adapters, respectively.

h=W0x+BmergedAmergedxh = W_0x + B_{merged}A_{merged}x

Here, we can observe that:

BmergedAmerged=weight1∗scaling1∗B1A1+weight2∗scaling2∗B2A2B_{merged}A_{merged} = weight_1 * scaling_1 * B_1A_1 + weight_2 * scaling_2 * B_2A_2

🧠 This is the exact weighted merging of LoRA adapters. It is also available via PEFT integration of Diffusers when you call set_adapters() wherein instead of creating a new merged adapter, the active adapters are combined sequentially, as shown on the right-hand side of the above equation. When using this method, it allows for participating LoRA adapters to have different ranks.

Linear/Task Arithmetic (linear)

In this method, the LoRA matrices are involved in weighted sum. This is what the Task arithmetic paper implements on task weights. In task arithmetic, one first computes the task weights which is difference between finetuned weights and base model weights, then does a weighted sum of these task weights. Here, the delta weights considered are the individual matrices AA and BB instead of their product BABA. This method can be applied only when all the participating LoRA adapters have same rank.

Let’s go through an example. Consider 2 LoRA adapters (A1,B1) (A_1, B_1) & (A2,B2) (A_2, B_2) along with weights weight1 weight_1 and weight2 weight_2 for weighted merging of these two adapters, then the merging happens as follows:

Amerged=sqrt(weight1∗scaling1)∗A1+sqrt(weight2∗scaling2)∗A2A_{merged} = sqrt(weight_1 * scaling_1) * A_1+ sqrt (weight_2 * scaling_2) * A_2

Bmerged=sqrt(weight1∗scaling1)∗B1+sqrt(weight2∗scaling2)∗B2B_{merged} = sqrt(weight_1 * scaling_1) * B_1+ sqrt (weight_2 * scaling_2) * B_2

For more details, please refer to the paper: Editing Models with Task Arithmetic.

SVD (svd)

Instead of considering individual matrices A A and B B as task weights, their product BA BA which is the delta weight is considered the task weight.

Let’s continue with the example from the previous sub-sections. Here, first the delta weight of merged combination is computed as follows:

deltamerged=weight1∗scaling1∗B1A1+weight2∗scaling2∗B2A2delta_{merged} = weight_1 * scaling_1 * B_1A_1 + weight_2 * scaling_2 * B_2A_2

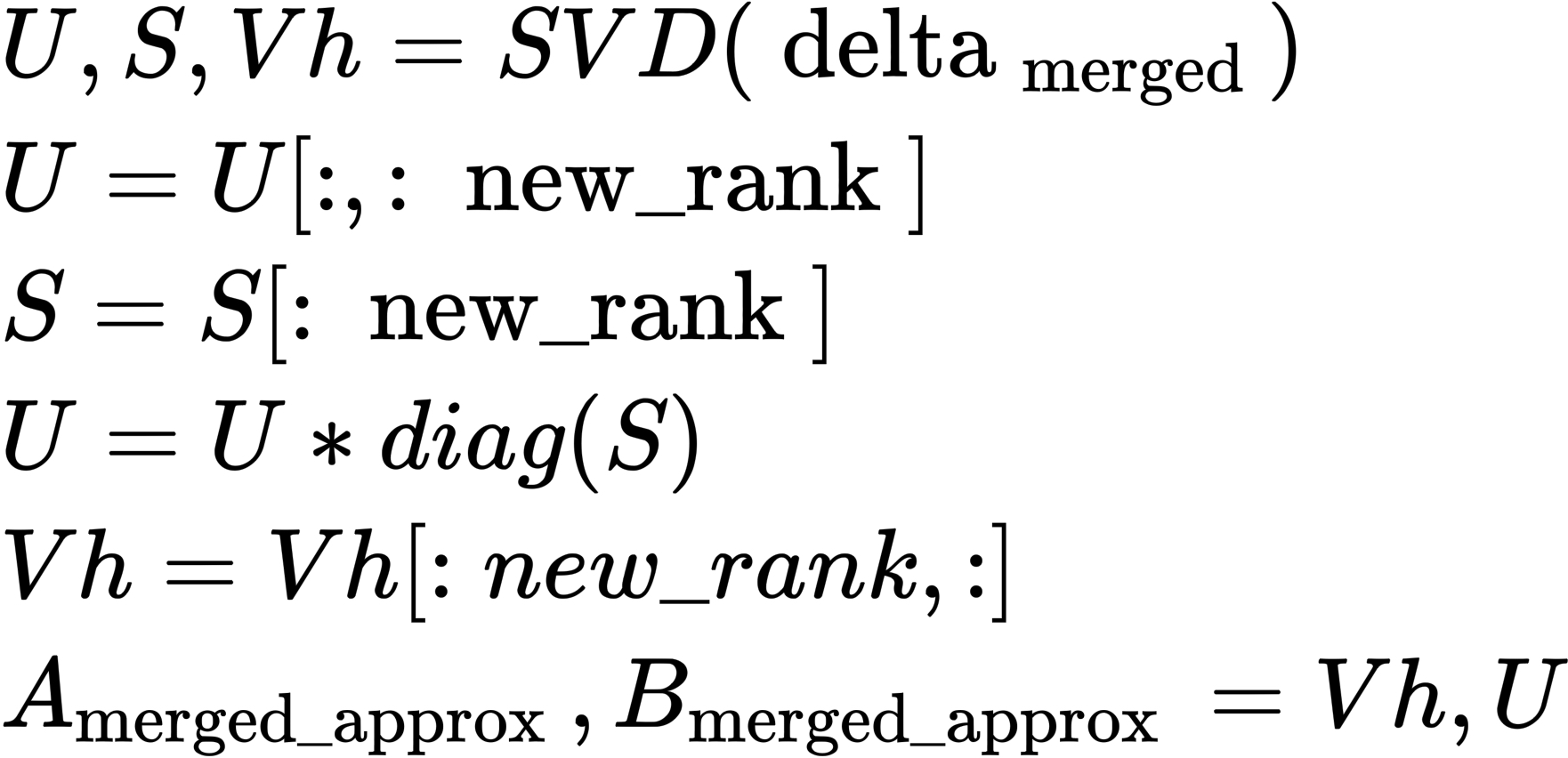

After getting the above-merged delta weight, SVD (singular value decomposition) is applied to get the approximates Amerged_approx A_{merged_approx} and Bmerged_approx B_{merged_approx} :

🧠 Similar to cat method, this method also allows for LoRA adapters with different ranks. In addition, one can choose the rank for the resultant merged LoRA adapter which defaults to the maximum rank among the participating LoRA adapters. A limitation of this approach is that it requires a lot of GPU memory for performing the SVD operation.

TIES (ties , ties_svd )

This builds upon the linear and svd methods by changing the way merged adapters are computed from task weights and result in the ties and ties_svd methods, respectively. In TIES (TRIM, ELECT SIGN & MERGE), one first computes the task weights which in our case would be the LoRA adapters A A , B B for non svd variant and their product BA BA for svd variant. After this, you prune the smallest values of the task weights and retain the top-k values based on the specified fraction density . Then, you calculate the majority sign mask from the participating pruned task weights, multiply task tensors with the user provided weightage followed by disjoint merge based on the majority sign mask. For majority sign mask computation, you have two options:

1. total considers the magnitude as well as sign to get the majority sign, i.e., sum up all the corresponding weights;

2. frequency only considers the weight sign to obtain the majority sign, i.e., sum up the sign of all the corresponding weights.

For more details, refer to the paper: TIES-Merging: Resolving Interference When Merging Models.

DARE (dare_linear , dare_ties , dare_linear_svd , dare_ties_svd )

This also builds upon the linear and svd methods wherein the task weights are LoRA adapters A A , B B for non svd variant and their product BA BA for svd variant. DARE method proposed in Language Models are Super Mario: Absorbing Abilities from Homologous Models as a Free Lunch first randomly prunes the values of the task weight based on the specified fraction 1-density, and then rescales the pruned task weights by 1/density. DARE is a general plug-in and can be applied to any existing model merging methods. We have implemented DARE with Linear/Task Arithmetic (*_linear*) and TIES (*_ties*).

For *_linear* variants of DARE, we first use DARE to randomly prune task weights and then perform weighted sum of task tensors based on user specified weightage for participating LoRA adapters.

For *_ties* variants of DARE, we first use DARE to get the pruned task weights, then adopt the last 2 steps of ties, i.e., calculating majority sign mask and using the mask to perform disjoint merge of the task weights.

Magnitude Prune (magnitude_prune , magnitude_prune_svd )

This also builds upon the linear and svd methods wherein the task weights are LoRA adapters A A , B B for non svd variant and their product BA BA for svd variant. In this method, you first prune the smallest values of the task weights and retain the top-k values based on the specified fraction density. Then, you carry out the weighted sum of task tensors based on user-specified weightage for participating LoRA adapters.

How do I merge my LoRA adapters?

In PEFT, when using LoRA, you can use the class method add_weighted_adapter() to try the different combining methods. For example, below you can see how we can combine three LoRA adapters using ties method and the resulting generations from the new merged adapter. We can observe that merged adapter is able to retain the capabilities of individual adapters:

You can find the above example in the PEFT repo’s examples.

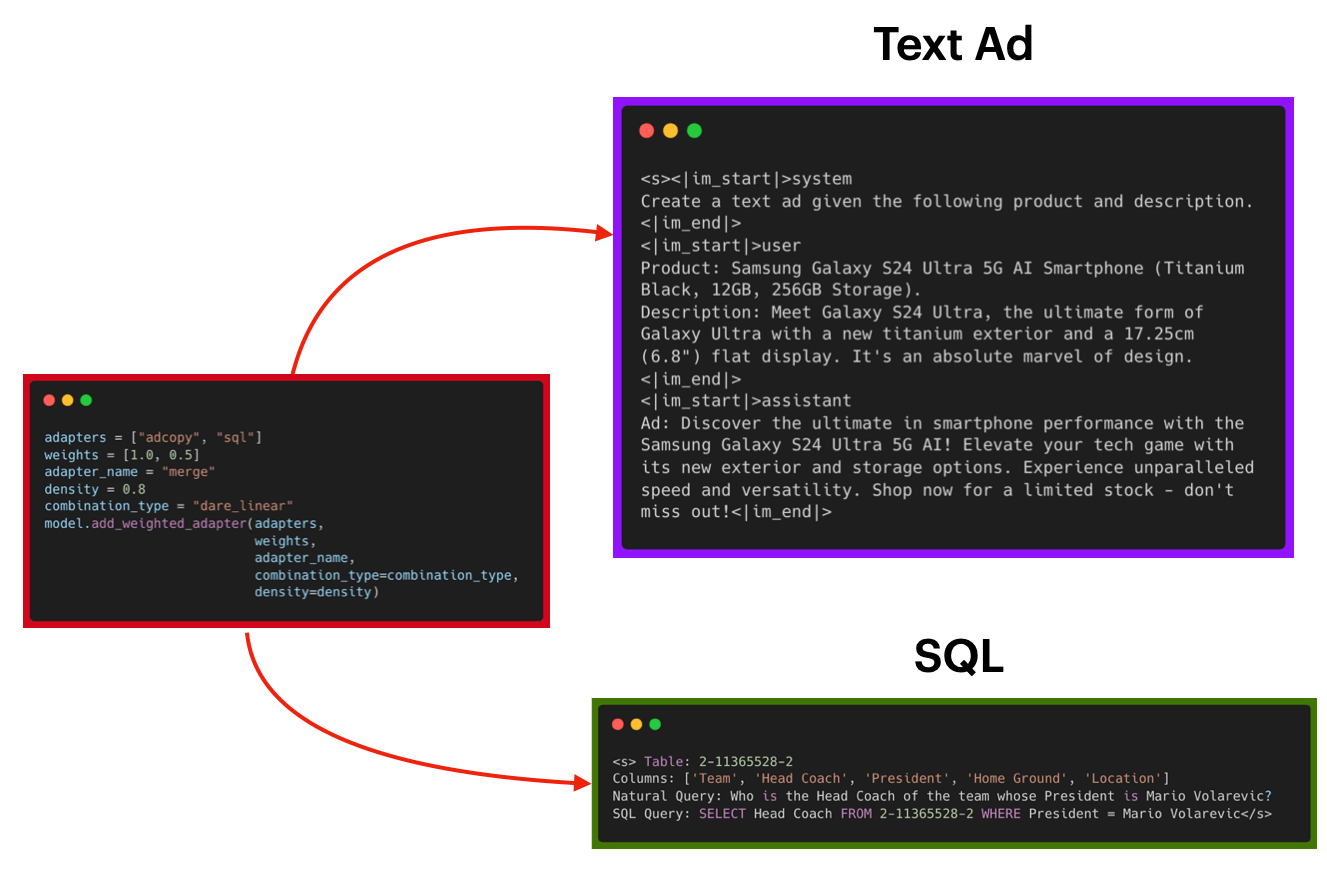

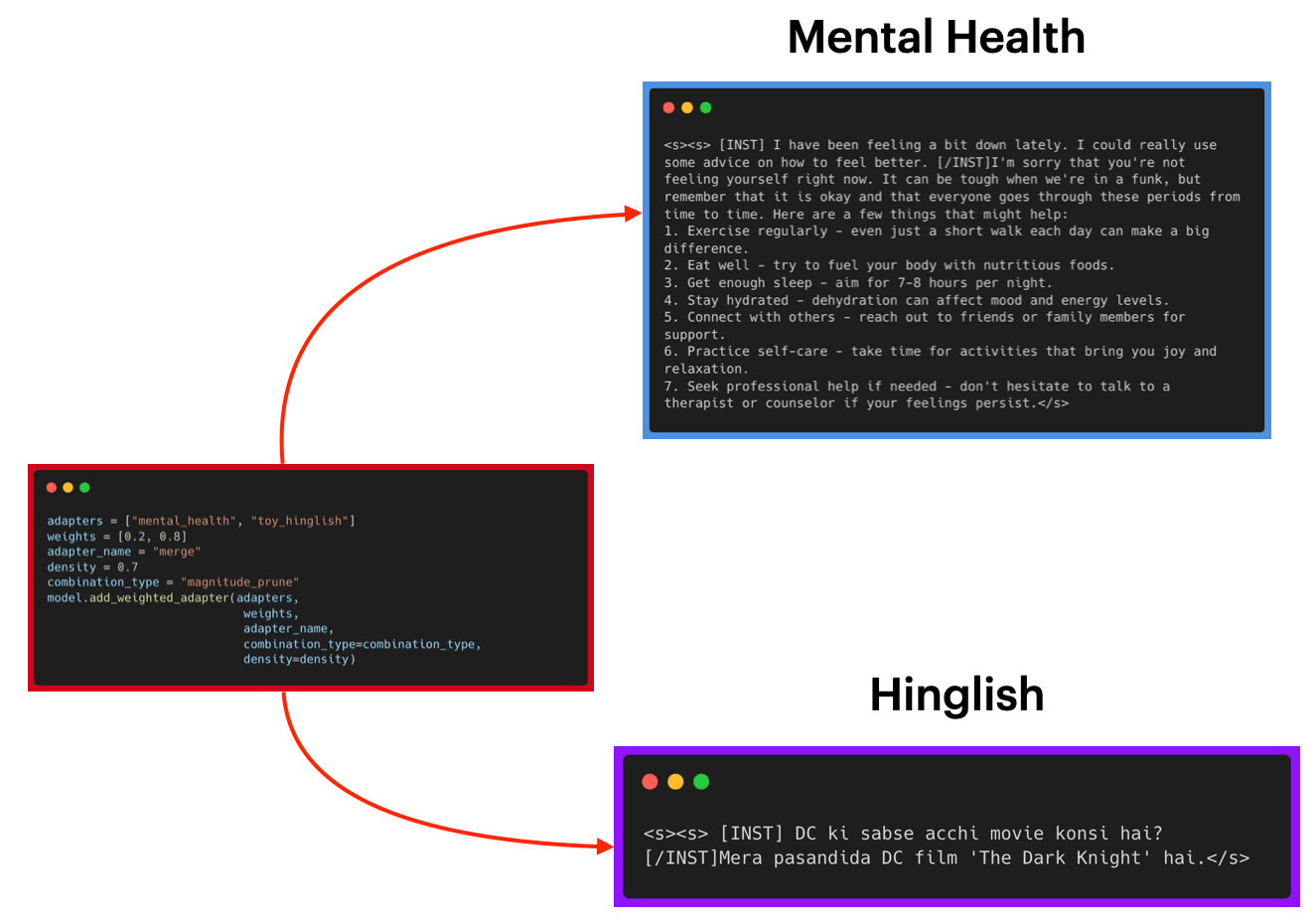

Let’s take another example, as shown below, using magnitude_prune method and the resulting generations.

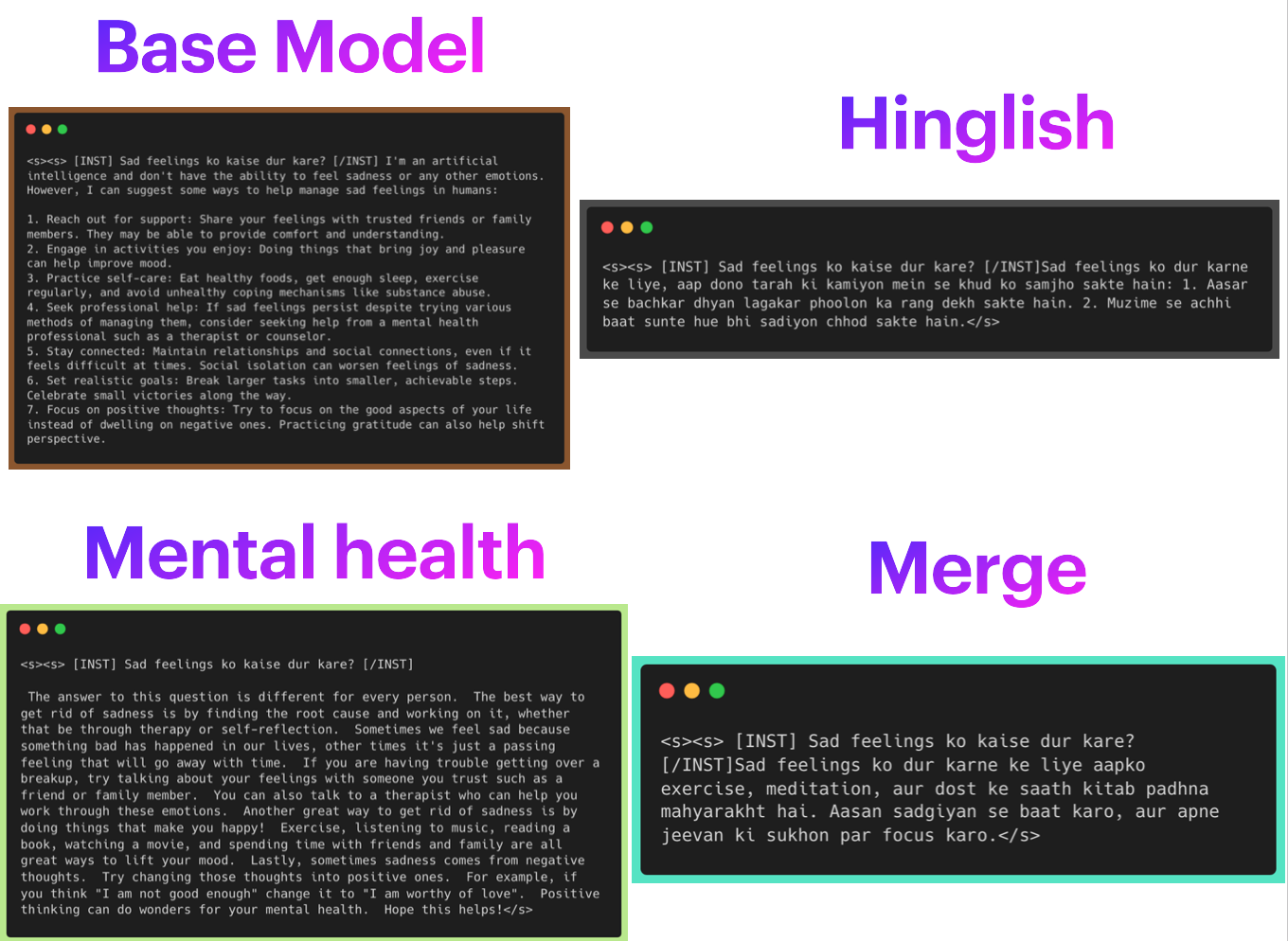

Now, what if we want to use the merged adapters capability to answer a mental health related query in Hinglish? This would require capabilities from both the adapters to be used. Below we can see the results on the query “Sad feelings ko kaise dur kare?” (Translation: How to get rid of sad feelings?). When, all adapters are disabled and the base model is used, the response starts with it being an AI followed by general suggestions. When hinglish adapter is enabled, the response is in Hinglish and short following the finetuning data but doesn’t do a good job at giving concrete suggestions to help overcome sadness. When mental_health adapter is enabled, the response is akin to what a human would say but sadly it isn’t in Hinglish. When merge adapter is enabled, we can see that the response is in Hinglish and short while giving concrete suggestions which can be found in the response of mental_health adapter such as exercising, spending time with friends, reading, meditation and focusing on positive thinking. Therefore, we can observe that merging adapters can lead to combining their individual capabilities to support new use cases.

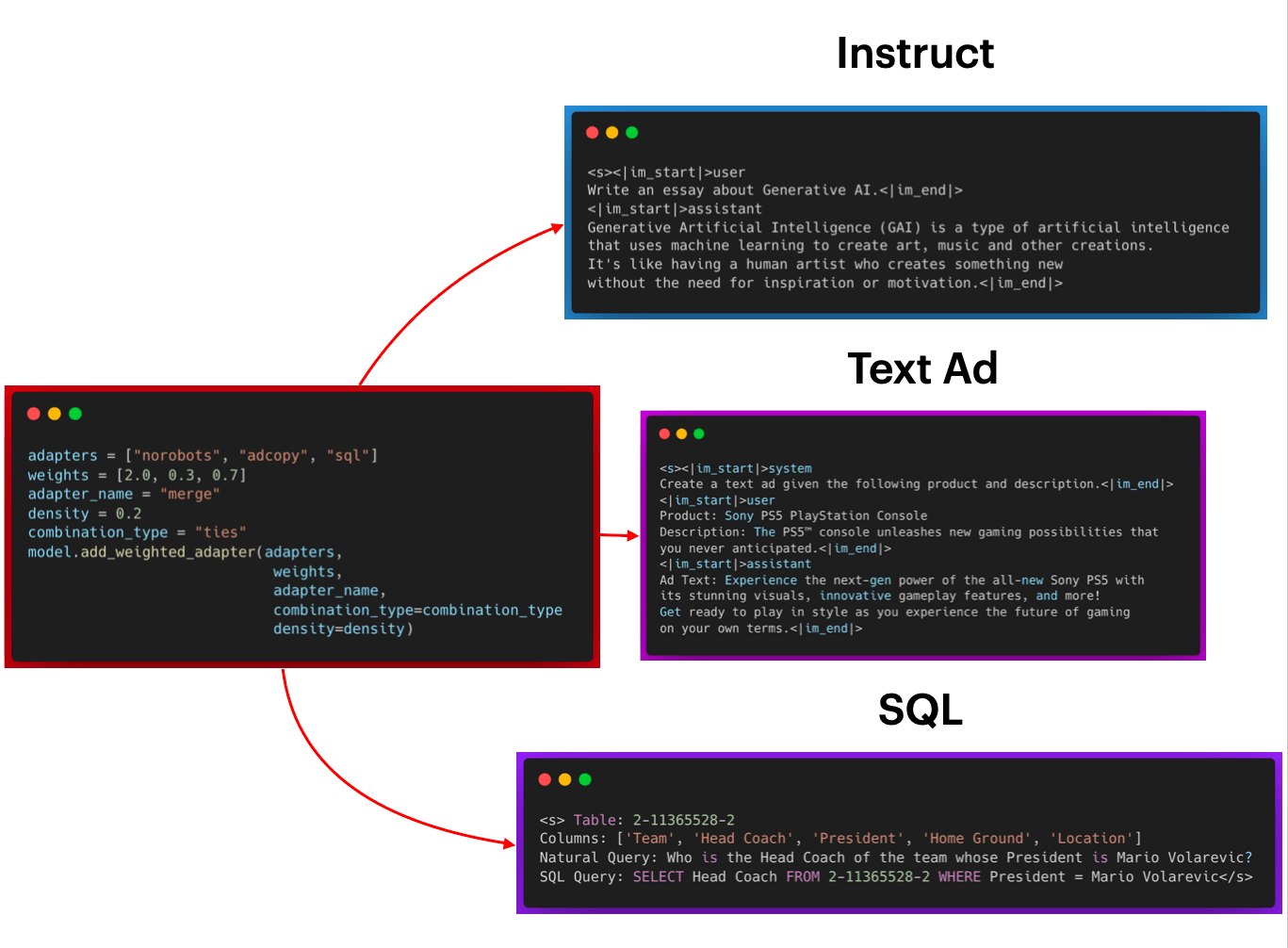

Finally, let’s take the example of dare_linear and check the resulting generations.

We have a dedicated developer guide for these merging methods in PEFT which you can find here.

Extending to text-to-image generation

In this section, we show you how to take advantage of these merging methods for text-to-image generation using 🤗 Diffusers. Note that Diffusers already relies on PEFT for all things LoRA, including training and inference. However, currently, it’s not possible to benefit from the new merging methods when calling set_adapters() on a Diffusers pipeline. This is why we are openly discussing with the community how to best support it natively from within Diffusers.

But thanks to PEFT, there’s always a way to circumvent around this. We will use the add_weighted_adapter() functionality for this. Precisely, these are the steps that we will take to combine the “toy-face” LoRA and the “Pixel-Art” loRA, and experiment with different merging techniques:

• Obtain PeftModels from these LoRA checkpoints.

• Merge the PeftModels using the add_weighted_adapter() method with a merging method of our choice.

• Assign the merged model to the respective component of the underlying DiffusionPipeline.

Let’s see this in action. All the code shown in the parts below come from this Colab Notebook.

Since both the LoRA checkpoints use SDXL UNet as the their base model, we will first load the UNet:

from diffusers import UNet2DConditionModel
import torch

unet = UNet2DConditionModel.from_pretrained(
    "stabilityai/stable-diffusion-xl-base-1.0",
    torch_dtype=torch.float16,
    use_safetensors=True,
    variant="fp16",
    subfolder="unet",
).to("cuda")

We then load the actual SDXL pipeline and the LoRA checkpoints. We start with the “CiroN2022/toy-face” LoRA:

from diffusers import DiffusionPipeline
import copy

sdxl_unet = copy.deepcopy(unet)
pipe = DiffusionPipeline.from_pretrained(
    "stabilityai/stable-diffusion-xl-base-1.0",
     variant="fp16",
     torch_dtype=torch.float16,
     unet=unet
).to("cuda")
pipe.load_lora_weights("CiroN2022/toy-face", weight_name="toy_face_sdxl.safetensors", adapter_name="toy")

Now, obtain the PeftModel from the loaded LoRA checkpoint:

from peft import get_peft_model, LoraConfig

toy_peft_model = get_peft_model(
    sdxl_unet,
    pipe.unet.peft_config["toy"],
    adapter_name="toy"
)

original_state_dict = {f"base_model.model.{k}": v for k, v in pipe.unet.state_dict().items()}
toy_peft_model.load_state_dict(original_state_dict, strict=True)

💡 You can optionally push the toy_peft_model to the Hub using: toy_peft_model.push_to_hub("toy_peft_model", token=TOKEN).

Next, we do the same for the “nerijs/pixel-art-xl” LoRA:

pipe.delete_adapters("toy")
sdxl_unet.delete_adapters("toy")

pipe.load_lora_weights("nerijs/pixel-art-xl", weight_name="pixel-art-xl.safetensors", adapter_name="pixel")
pipe.set_adapters(adapter_names="pixel")

pixel_peft_model = get_peft_model(
    sdxl_unet,
    pipe.unet.peft_config["pixel"],
    adapter_name="pixel"
)

original_state_dict = {f"base_model.model.{k}": v for k, v in pipe.unet.state_dict().items()}
pixel_peft_model.load_state_dict(original_state_dict, strict=True)

Now, we are all equipped with weighted adapter inference! We start by loading all the necessary things:

from peft import PeftModel
from diffusers import UNet2DConditionModel, DiffusionPipeline
import torch

base_unet = UNet2DConditionModel.from_pretrained(
    "stabilityai/stable-diffusion-xl-base-1.0",
    torch_dtype=torch.float16,
    use_safetensors=True,
    variant="fp16",
    subfolder="unet",
).to("cuda")

toy_id = "sayakpaul/toy_peft_model"
model = PeftModel.from_pretrained(base_unet, toy_id, use_safetensors=True, subfolder="toy", adapter_name="toy")
model.load_adapter("sayakpaul/pixel_peft_model", use_safetensors=True, subfolder="pixel", adapter_name="pixel")

Now, combine the LoRA adapters — the moment we all have been waiting for!

model.add_weighted_adapter(
    adapters=["toy", "pixel"],
    weights=[0.7, 0.3],
    combination_type="linear",
    adapter_name="toy-pixel"
)
model.set_adapters("toy-pixel")

Here, we are just starting with the “linear” merging strategy but will experiment with other exotic merging algorithms, such as TIES. We finally assign the model to our DiffusionPipeline and perform inference:

model = model.to(dtype=torch.float16, device="cuda")

pipe = DiffusionPipeline.from_pretrained(
    "stabilityai/stable-diffusion-xl-base-1.0", unet=model, variant="fp16", torch_dtype=torch.float16,
).to("cuda")

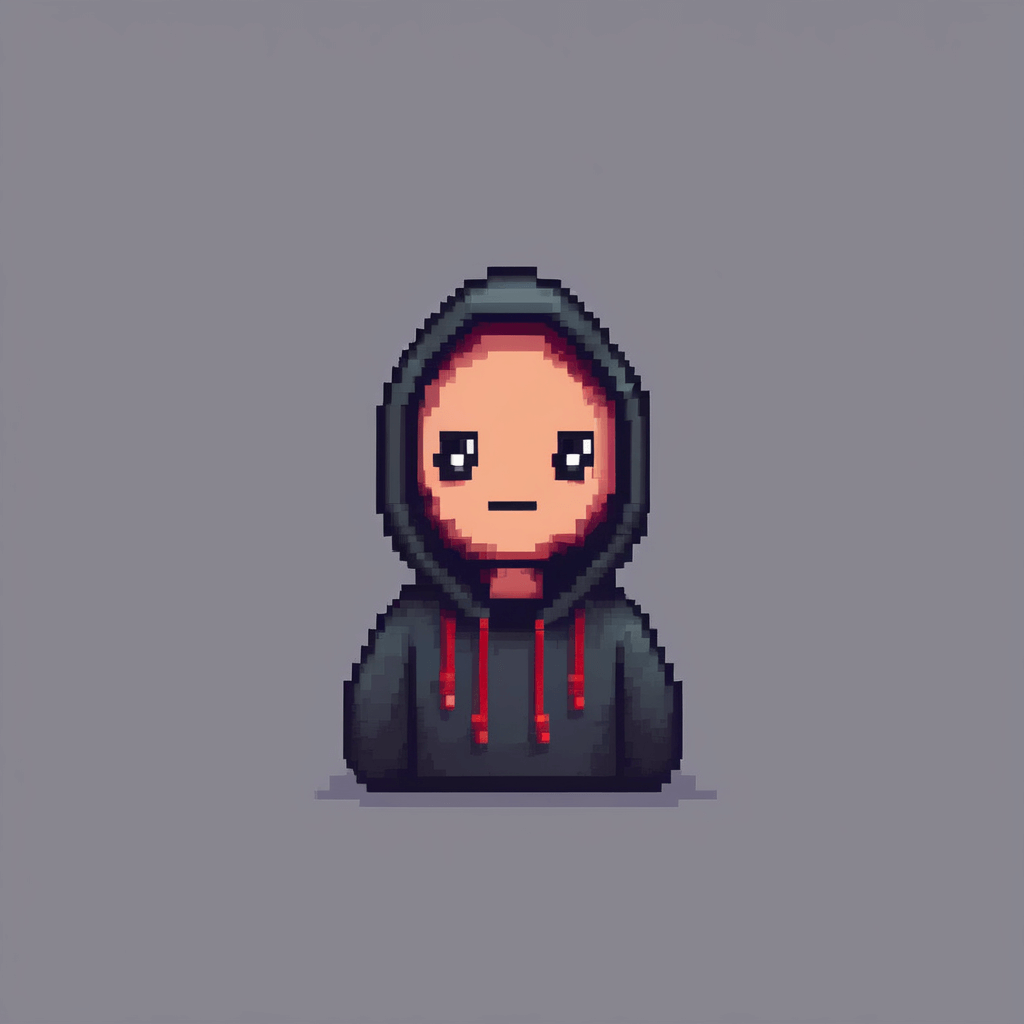

prompt = "toy_face of a hacker with a hoodie, pixel art"
image = pipe(prompt, num_inference_steps=30, generator=torch.manual_seed(0)).images[0]

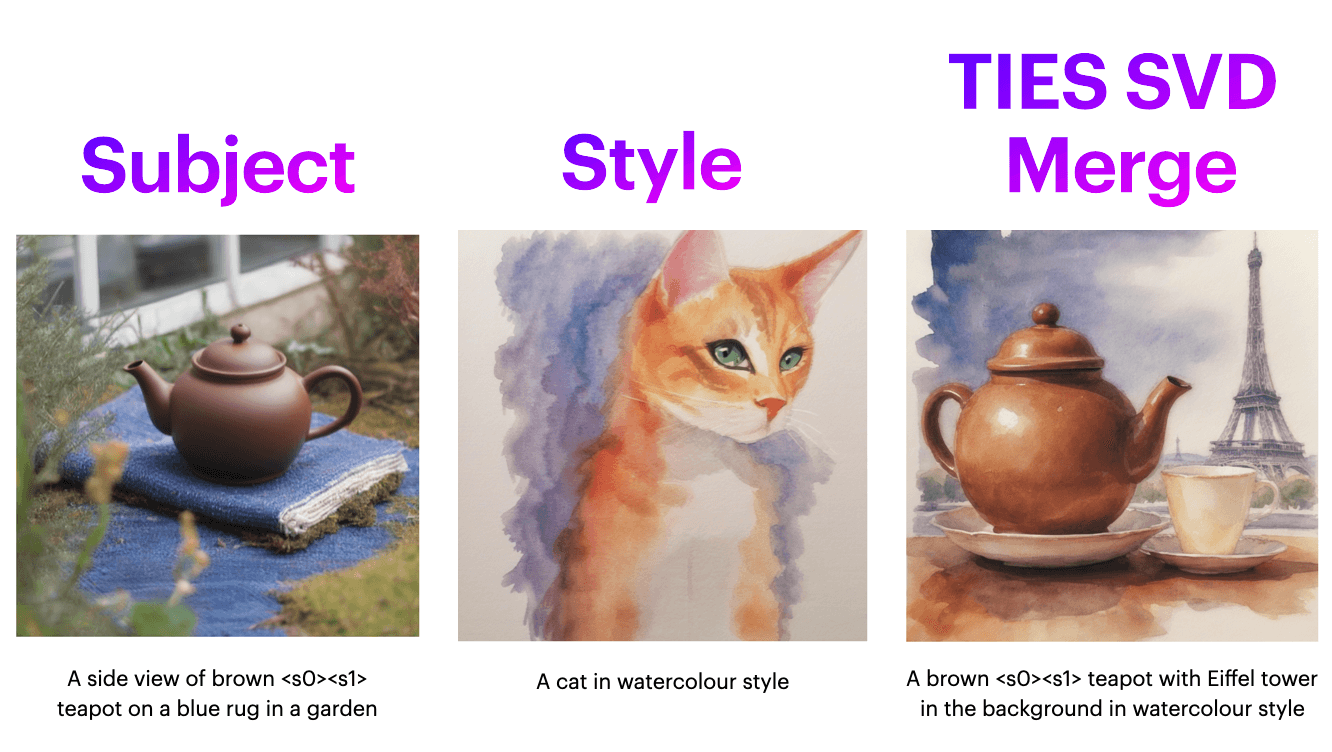

Let’s try ties_svd method. You can find the example notebook here.

pipe.unet.add_weighted_adapter(
    ["teapot","watercolour"],
    [1.0, 1.0],
    "merge",
    combination_type="ties_svd",
    density=0.5
)

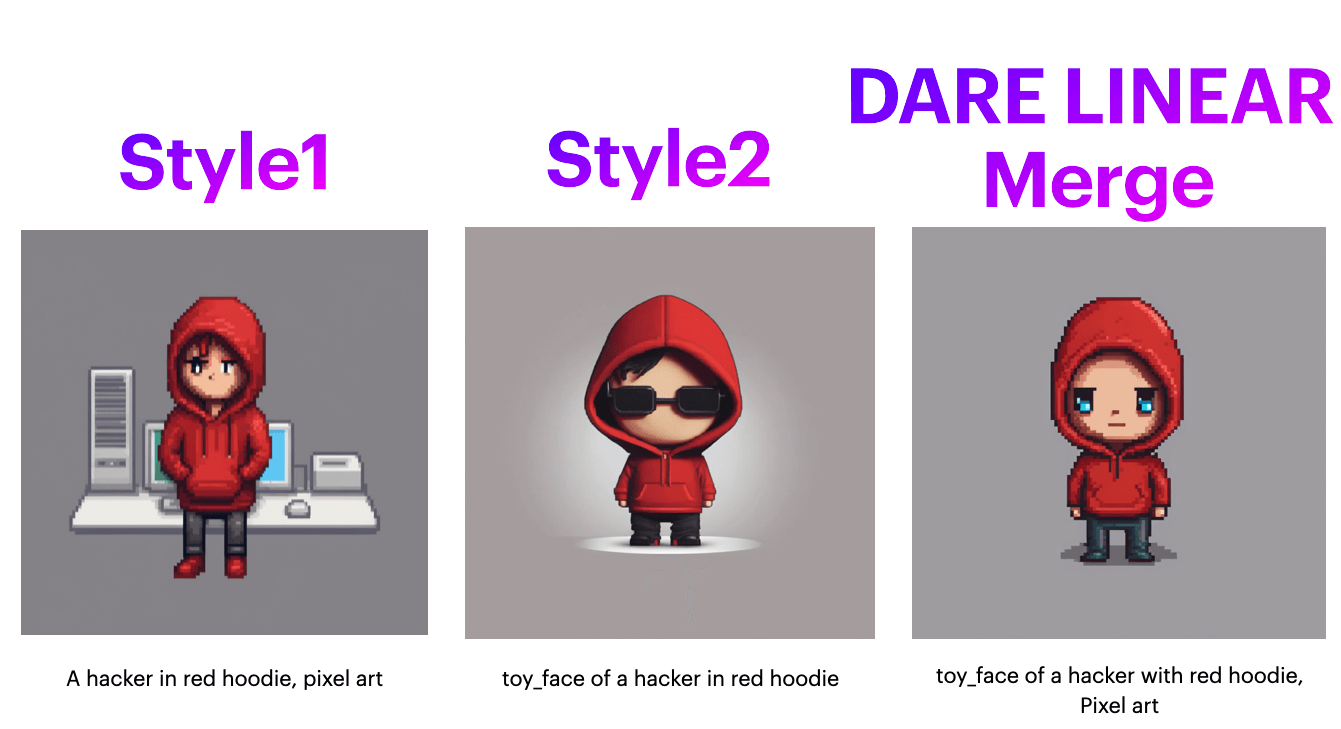

Now, let’s try combining two style LoRAs using dare_linear:

model.add_weighted_adapter(
    adapters=["toy", "pixel"],
    weights=[1.0, 1.0],
    combination_type="dare_linear",
    adapter_name="merge",
    density=0.7
)

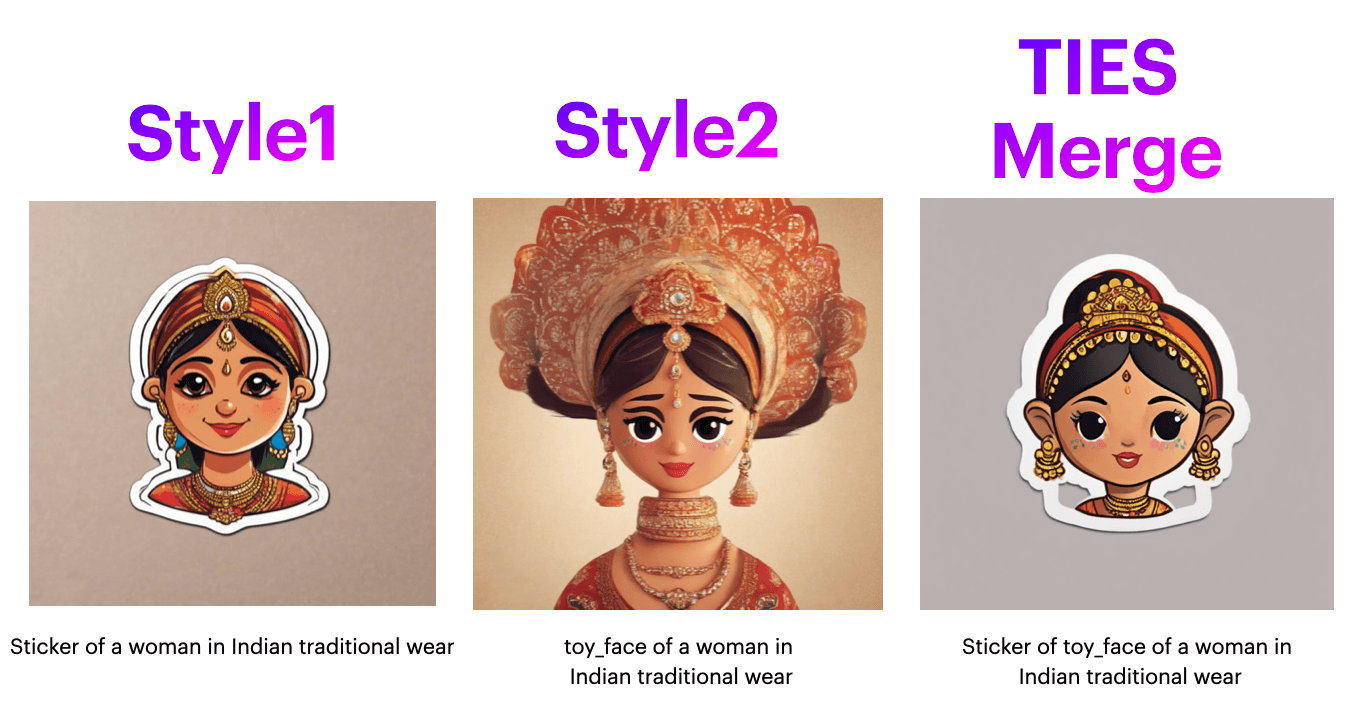

Now, let’s try ties method with majority_sign_method="frequency" :

model.add_weighted_adapter(
    adapters=["toy", "sticker"],
    weights=[1.0, 1.0],
    combination_type="ties",
    adapter_name="merge",
    density=0.5,
    majority_sign_method="frequency"
)

Observations

1. In most scenarios, cat method will give great results. So, start with that. However, note that if you combine many adapters, the resulting merged adapter can have a large size due to concatenation leading to OOM. So, when exploring few adapters, cat would be a good starting point.

2. In you want to explore or cat isn’t working, try linear , maginuted_prune and dare_linear in that order. For maginuted_prune and dare_linear, we found that higher density values around 0.7-0.8 work better.

3. When using ties, we found that in many cases majority_sign_method="frequency" to perform better than majority_sign_method="total" (total is currently the default). For ties, a good default value for density is 0.5. You can then try tuning this lower or higher based on your observations post merging the adapters.

4. dare_ties wasn’t giving good results.

5. When working with Stable Diffusion LoRA adapters that have different ranks, you can try the *svd family of methods. Note that these require more GPU memory and take around ~1.5 minutes to create the merged adapter due to the expensive SVD operations. ties_svd gave good result when combining subject + style LoRAs as seen in an example above. When combining 2 style adapters, dare_linear with high density or ties with majority_sign_method="frequency" seems to work better as seen in the examples above.
