Optimize and deploy with Optimum-Intel and OpenVINO GenAI

Back to Articles

Deploying Transformers models at the edge or client-side requires careful consideration of performance and compatibility. Python, though powerful, is not always ideal for such deployments, especially in environments dominated by C++. This blog will guide you through optimizing and deploying Hugging Face Transformers models using Optimum-Intel and OpenVINO™ GenAI, ensuring efficient AI inference with minimal dependencies.

Table of Contents

1. Why Use OpenVINO™ for Edge Deployment

2. Step 1: Setting Up the Environment

3. Step 2: Exporting Models to OpenVINO IR

4. Step 3: Model Optimization

5. Step 4: Deploying with OpenVINO GenAI API

6. Conclusion

Why Use OpenVINO™ for Edge Deployment

OpenVINO™ was originally developed as a C++ AI inference solution, making it ideal for edge and client deployment where minimizing dependencies is crucial. With the introduction of the GenAI API, integrating large language models (LLMs) into C++ or Python applications has become even more straightforward, with features designed to simplify deployment and enhance performance.

Step 1: Setting Up the Environment

Pre-requisites

To start, ensure your environment is properly configured with both Python and C++. Install the necessary Python packages:

pip install --upgrade --upgrade-strategy eager "optimum[openvino]"

Here are the specific packages used in this blog post:

transformers==4.44
openvino==24.3
openvino-tokenizers==24.3
optimum-intel==1.20
lm-eval==0.4.3

For GenAI C++ libraries installation follow the instruction here.

Step 2: Exporting Models to OpenVINO IR

Hugging Face and Intel's collaboration has led to the Optimum-Intel project. It is designed to optimize Transformers models for inference on Intel HW. Optimum-Intel supports OpenVINO as an inference backend and its API has wrappers for various model architectures built on top of OpenVINO inference API. All of these wrappers start from OV prefix, for example, OVModelForCausalLM. Otherwise, it is similar to the API of 🤗 Transformers library.

To export Transformers models to OpenVINO Intermediate Representation (IR) one can use two options: This can be done using Python’s .from_pretrained() method or the Optimum command-line interface (CLI). Below are examples using both methods:

Using Python API

from optimum.intel import OVModelForCausalLM

model_id = "meta-llama/Meta-Llama-3.1-8B"
model = OVModelForCausalLM.from_pretrained(model_id, export=True)
model.save_pretrained("./llama-3.1-8b-ov")

Using Command Line Interface (CLI)

optimum-cli export openvino -m meta-llama/Meta-Llama-3.1-8B ./llama-3.1-8b-ov

The ./llama-3.1-8b-ov folder will contain .xml and bin IR model files and required configuration files that come from the source model. 🤗 tokenizer will be also converted to the format of openvino-tokenizers library and corresponding configuration files will be created in the same folder.

Step 3: Model Optimization

When running LLMs on the resource constrained edge and client devices, model optimization is highly recommended step. Weight-only quantization is a mainstream approach that significantly reduces latency and model footprint. Optimum-Intel offers weight-only quantization through the Neural Network Compression Framework (NNCF), which has a variety of optimization techniques designed specifically for LLMs: from data-free INT8 and INT4 weight quantization to data-aware methods such as AWQ, GPTQ, quantization scale estimation, mixed-precision quantization. By default, weights of the models that are larger than one billion parameters are quantized to INT8 precision which is safe in terms of accuracy. It means that the export steps described above lead to the model with 8-bit weights. However, 4-bit integer weight-only quantization allows achieving a better accuracy-performance trade-off.

For meta-llama/Meta-Llama-3.1-8B model we recommend stacking AWQ, quantization scale estimation along with mixed-precision INT4/INT8 quantization of weights using a calibration dataset that reflects a deployment use case. As in the case of export, there are two options on how to apply 4-bit weight-only quantization to LLM model:

Using Python API

• Specify quantization_config parameter in the .from_pretrained() method. In this case OVWeightQuantizationConfig object should be created and set to this parameter as follows:

from optimum.intel import OVModelForCausalLM, OVWeightQuantizationConfig

MODEL_ID = "meta-llama/Meta-Llama-3.1-8B"
quantization_config = OVWeightQuantizationConfig(bits=4, awq=True, scale_estimation=True, group_size=64, dataset="c4")
model = OVModelForCausalLM.from_pretrained(MODEL_ID, export=True, quantization_config=quantization_config)
model.save_pretrained("./llama-3.1-8b-ov")

Using Command Line Interface (CLI):

optimum-cli export openvino -m meta-llama/Meta-Llama-3.1-8B --weight-format int4 --awq --scale-estimation --group-size 64 --dataset wikitext2 ./llama-3.1-8b-ov

Note: The model optimization process can take time as it and applies several methods subsequently and uses model inference over the specified dataset.

Model optimization with API is more flexible as it allows using custom datasets that can be passed as an iterable object, for example, and instance of Dataset object of 🤗 library or just a list of strings.

Weight quantization usually introduces some degradation of the accuracy metric. To compare optimized and source models we report Word Perplexity metric measured on the Wikitext dataset with lm-evaluation-harness project which support both 🤗 Transformers and Optimum-Intel models out-of-the-box.

Model

PPL PyTorch FP32

OpenVINO INT8

OpenVINO INT4

meta-llama/Meta-Llama-3.1-8B

7.3366

7.3463

7.8288

Step 4: Deploying with OpenVINO GenAI API

After conversion and optimization, deploying the model using OpenVINO GenAI is straightforward. The LLMPipeline class in OpenVINO GenAI provides both Python and C++ APIs, supporting various text generation methods with minimal dependencies.

Python API Example

import argparse
import openvino_genai

device = "CPU"  # GPU can be used as well
pipe = openvino_genai.LLMPipeline(args.model_dir, device)
config = openvino_genai.GenerationConfig()
config.max_new_tokens = 100
print(pipe.generate(args.prompt, config))

To run this example you need minimum dependencies to be installed into the Python environment as OpenVINO GenAI is designed to provide a lightweight deployment. You can install OpenVINO GenAI package to the same Python environment or create a separate one to compare the application footprint:

pip install openvino-genai==24.3

C++ API Example

Let's see how to run the same pipeline with OpenVINO GenAI C++ API. The GenAI API is designed to be intuitive and provides a seamless migration from 🤗 Transformers API.

Note: In the below example, any other available device in your environment can be specified for "device" variable. For example, if you are using an Intel CPU with integrated graphics, "GPU" is a good option to try with. To check the available devices, you can use ov::Core::get_available_devices method (refer to query-device-properties).

#include "openvino/genai/llm_pipeline.hpp"
#include <iostream>

int main(int argc, char* argv[]) {
   std::string model_path = "./llama-3.1-8b-ov";
   std::string device = "CPU"  // GPU can be used as well
   ov::genai::LLMPipeline pipe(model_path, device);
   std::cout << pipe.generate("What is LLM model?", ov::genai::max_new_tokens(256));
}

Customizing Generation Config

LLMPipeline also allows specifying custom generation options by means of ov::genai::GenerationConfig:

ov::genai::GenerationConfig config;
config.max_new_tokens = 256;
std::string result = pipe.generate(prompt, config);

With the LLMPipieline, users can not only effortlessly leverage various decoding algorithms such as Beam Search but also construct an interactive chat scenario with a Streamer as in the below example. Moreover, one can take advantage of enhanced internal optimizations with LLMPipeline, such as reduced prompt processing time with utilization of KV cache of previous chat history with the chat methods : start_chat() and finish_chat() (refer to using-genai-in-chat-scenario).

ov::genai::GenerationConfig config;
config.max_new_tokens = 100;
config.do_sample = true;
config.top_p = 0.9;
config.top_k = 30;

auto streamer = [](std::string subword) {
    std::cout << subword << std::flush;
    return false;
};

// Since the streamer is set, the results will
// be printed each time a new token is generated.
pipe.generate(prompt, config, streamer);

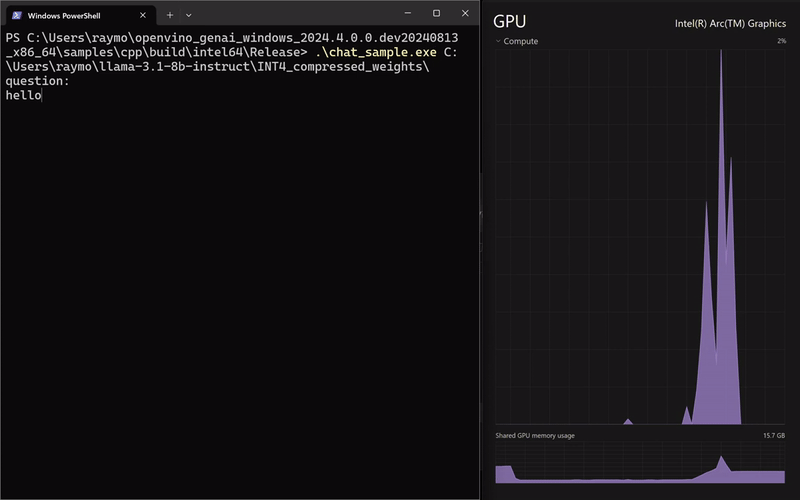

And finally let's see how to use LLMPipeline in the chat scenario:

pipe.start_chat()
for (size_t i = 0; i < questions.size(); i++) {
   std::cout << "question:\n";
   std::getline(std::cin, prompt);

   std::cout << pipe.generate(prompt) << std::endl;
}
pipe.finish_chat();

Conclusion

The combination of Optimum-Intel and OpenVINO™ GenAI offers a powerful, flexible solution for deploying Hugging Face models at the edge. By following these steps, you can achieve optimized, high-performance AI inference in environments where Python may not be ideal, ensuring your applications run smoothly across Intel hardware.

Additional Resources

1. You can find more details in this tutorial.

2. To build the C++ examples above refer to this document.

3. OpenVINO Documentation

4. Jupyter Notebooks

5. Optimum Documentation
