TL;DR

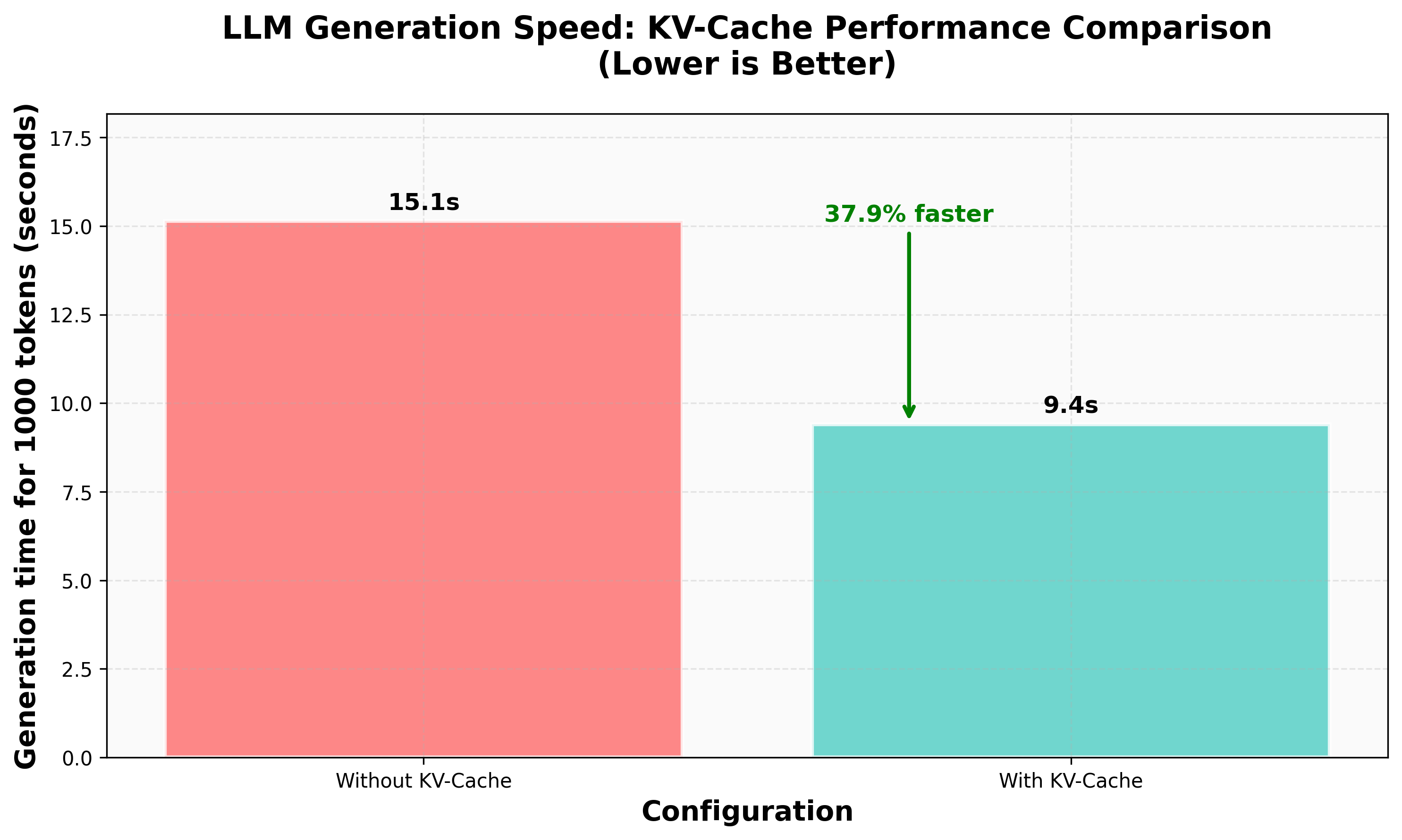

We have implemented KV Caching from scratch in our nanoVLM repository (a small codebase to train your own Vision Language Model with pure PyTorch). This gave us a 38% speedup in generation. In this blog post we cover KV Caching and all our experiences while implementing it. The lessons learnt are general and can be applied to all autoregressive language model generations. Implementing from scratch on a small codebase is a great learning experience, come along for the ride!

Introduction

Autoregressive language models generate text by sampling one token at a time. During inference, the model processes a given input sequence, predicts the next token, appends it to the sequence, and repeats this process until some stopping criterion:

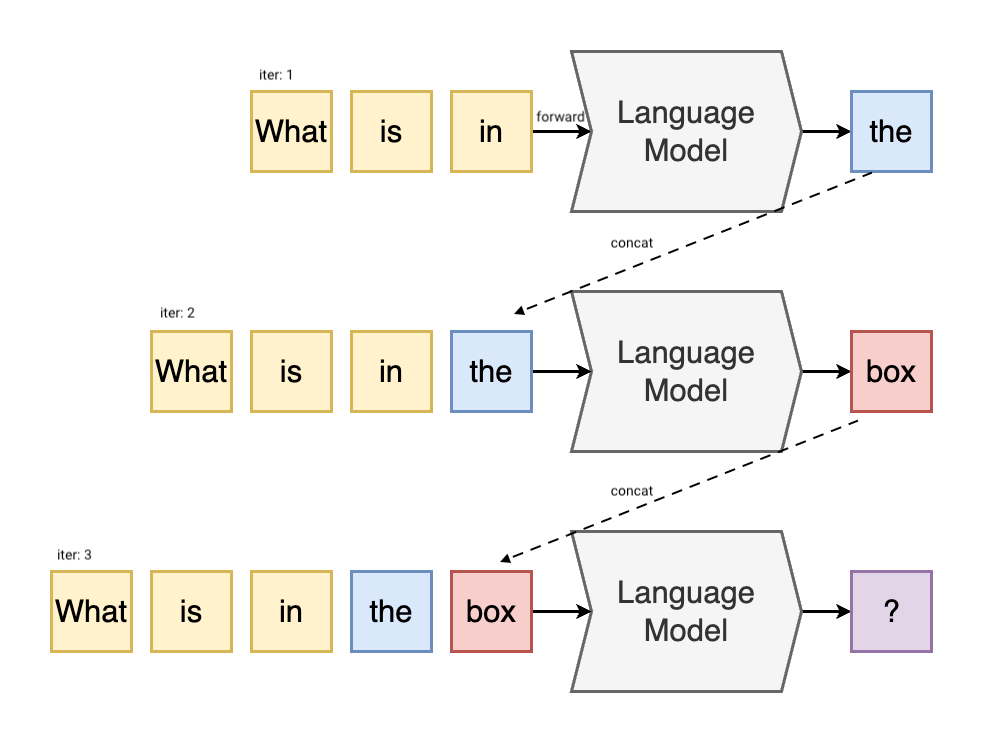

This step-by-step generation is inherently sequential:

To generate token ti+1 t_{i+1} , the model must consider the entire sequence from t0 t_0 to ti t_i . From the first instance in the above example ti+1 t_{i+1} would be the , while all the previous tokens t0 t_0 to ti t_i would be [What, is, in].
Although transformers are internally parallel, each new prediction requires a full forward pass through all transformer layers, which incurs a quadratic memory/compute in terms of the sequence length.

This repetition also leads to computational redundancy. In this post, we explore KV Caching, an optimisation technique that mitigates this inefficiency.

Table of contents:

Revisiting the Transformer Architecture

Before diving into caching, let’s revisit how attention operates in transformer models. A Transformer language model consists of stacked layers, each composed of:

Multi-head self-attention
Feed-forward network (MLP)
Residual connections and layer normalisation

To understand where KV Caching helps, we focus on the self-attention mechanism, specifically within a single attention head.

Let’s walk through a simple PyTorch implementation to visualise the key computations.

import torch

input_seq_length = 5
dim_model = 10

input_ids_emb = torch.randn(input_seq_length, dim_model)
W_q = torch.randn(dim_model, dim_model)
W_k = torch.randn(dim_model, dim_model)
W_v = torch.randn(dim_model, dim_model)

Q = input_ids_emb @ W_q
K = input_ids_emb @ W_k
V = input_ids_emb @ W_v

Self-Attention Computation

For a sequence of T T input embeddings represented as X∈RT×D X \in \mathbb{R}^{T \times D} , self-attention is computed as:

Q=XWQ Q = XW_Q , with WQ∈RD×Dq W_Q \in \mathbb{R}^{D \times D_q}
K=XWK K = XW_K , with WK∈RD×Dk W_K \in \mathbb{R}^{D \times D_k}
V=XWV V = XW_V , with WV∈RD×Dv W_V \in \mathbb{R}^{D \times D_v}
Causal mask M M to prevent future token access

The final output is:

Attention(X;Q,K,V)=softmax(QK⊤⋅Mdk)V \text{Attention}(X; Q, K, V) = \text{softmax}\left( \frac{QK^\top \cdot M}{\sqrt{d_k}} \right)V

Here’s a minimal PyTorch equivalent using a causal mask:

import torch.nn.functional as F
import math

d_k = K.shape[-1]
attention_scores = (Q @ K.T) / math.sqrt(d_k)

# Lower triangular mask to prevent future token access
causal_mask = torch.tril(torch.ones(input_seq_length, input_seq_length))
masked_scores = attention_scores.masked_fill(causal_mask == 0, float('-inf'))

attention_weights = F.softmax(masked_scores, dim=-1)
output = attention_weights @ V

Where Redundancy Creeps In

In autoregressive generation, the model generates one token at a time. With each step, it recomputes Q Q , K K , and V V for the entire sequence, even though the earlier tokens haven’t changed.

new_token_emb = torch.randn(1, dim_model)
extended_input = torch.cat([input_ids_emb, new_token_emb], dim=0)

Q_ext = extended_input @ W_q
K_ext = extended_input @ W_k
V_ext = extended_input @ W_v

# (output_ext would be computed using Q_ext, K_ext, V_ext + masking)

To confirm the redundancy:

torch.testing.assert_close(K, K_ext[:input_seq_length]) # test pass
torch.testing.assert_close(V, V_ext[:input_seq_length]) # test pass

These checks show that for all but the newest token, K K and V V are identical to previously computed values.

Original (5×5):         Extended (6×6):
■ ■ ■ ■ ■              ■ ■ ■ ■ ■ □
■ ■ ■ ■ ■              ■ ■ ■ ■ ■ □
■ ■ ■ ■ ■    →         ■ ■ ■ ■ ■ □
■ ■ ■ ■ ■              ■ ■ ■ ■ ■ □
■ ■ ■ ■ ■              ■ ■ ■ ■ ■ □
                       □ □ □ □ □ □

■ = Already computed and reused
□ = Recomputed unnecessarily

Most of the attention computation is repeated needlessly. This gets more expensive as sequences grow.

How KV Caching Fixes It

To eliminate this inefficiency, we use KV Caching:

After processing the initial prompt, we cache the computed keys ( K K ) and values ( V V ) for each layer.
During generation, we only compute K K and V V for the new token, and append them to the cache.
We compute Q Q for the current token and use it with the cached K K and V V to get the output.

This changes generation from full-sequence re-computation to a lightweight, incremental update.

✅ In practice, this cache is a per-layer dictionary with keys "key" and "value", each of shape (batch_size, num_heads, seq_len_cached, head_dim).

This is the foundation of how modern LLMs can generate long outputs efficiently.

KV Caching in nanoVLM: From Theory to Practice

Now that we understand the theory behind KV Caching, let’s see how it’s implemented in practice inside our nanoVLM repository. This is an ideal testbed, as it's a super concise and self-contained codebase.

KV caching is enabled across three key components in our model:

The Attention block that uses and updates the KV cache
The Language model that tracks cache per layer
The Generation loop that separates prefill (the initial pass with the input prompt) and sequential decode phases

1. Updating KV Cache in the Attention Block

In the LanguageModelGroupedAttention class, we modify the forward function to accept and update a cache of keys and values (block_kv_cache).

Previously, the model recomputed K K and V V at every generation step. Now we only compute Knew K_{\text{new}} , Vnew V_{\text{new}} for the current token, and append them to the cached values.

def forward(self, x, cos, sin, attention_mask=None, block_kv_cache=None):
    is_prefill = block_kv_cache is None
    B, T_curr, C = x.size()

    # Project inputs to Q, K, V
    q_curr, k_curr, v_curr = project_current_tokens(x)
    q, k_rotated = apply_rotary_pos_embd(q_curr, k_curr, cos, sin)

    if not is_prefill and block_kv_cache['key'] is not None:
        # Append new keys and values to the cache
        k = torch.cat([block_kv_cache['key'], k_rotated], dim=2)
        v = torch.cat([block_kv_cache['value'], v_curr], dim=2)
    else:
        # First pass (prefill) — no cache
        k, v = k_rotated, v_curr

    block_kv_cache = {'key': k, 'value': v}
    return attention_output, block_kv_cache

2. Tracking Cache Across Layers

In the LanguageModel class, we introduce layer-wise cache tracking. The start_pos argument helps the model compute correct rotary positional encodings for newly generated tokens.

def forward(self, x, kv_cache=None, start_pos=0):
    T_curr = x.size(1)
    position_ids = torch.arange(start_pos, start_pos + T_curr, device=x.device)
    cos, sin = self.rotary_embd(position_ids)

    for i, block in enumerate(self.blocks):
        # Pass per-layer KV cache
        x, kv_cache[i] = block(x, cos, sin, attention_mask, kv_cache[i])

    return x, kv_cache

kv_cache: A list of dictionaries, one per transformer layer, holding previous keys and values.
start_pos: Ensures that rotary embeddings are aligned with current generation index.

3. Prefill vs Decode in the Generation Loop

The biggest architectural change is in the generate() method of the VisionLanguageModel.

We split generation into two stages:

PREFILL PHASE: Encode the full prompt and build the initial cache.
DECODE PHASE: Generate tokens one at a time using cached keys/values.

PREFILL PHASE (cache construction)
[Prompt: "What is"] → [Transformer] → [Cache: K, V for all layers]

DECODE PHASE (token-by-token)
[Token: "the"] → [Q("the") + cached K/V] → [next token: "?"] → ...

Here’s the corresponding code:

# PREFILL: Process the input prompt, fill the cache
prompt_output, kv_cache_list = self.forward(
    inputs,
    kv_cache=None,
    start_pos=0
)

# DECODE: Generate one token at a time using cached K/V
for i in range(max_new_tokens):
    next_token = sample_from(prompt_output)

    decode_output, kv_cache_list = self.forward(
        next_token,
        kv_cache=kv_cache_list,
        start_pos=current_position  # updated with each step
    )

    prompt_output = decode_output

By separating these phases, we avoid redundant computation and dramatically speed up inference, especially for long prompts.

Summary of Changes

Module

Original Behaviour

New Behaviour

LanguageModelGroupedAttention.forward

Recomputes Q Q , K K , V V on every step

Uses and updates KV cache

LanguageModel.forward

No memory of previous state

Tracks per-layer KV cache, handles start_pos

VisionLanguageModel.generate

One-phase generation loop

Split into prefill and decode phases

Summary: Why KV Caching Matters

Benefit

Explanation

Incremental growth

Cache grows by one row per new token

Position-aware decoding

start_pos ensures correctness of position encoding calculations

Efficiency

Reduces per-token inference to O(seq len) instead of quadratic

KV caching eliminates unnecessary computation during autoregressive generation, enabling faster and more efficient inference, especially in long sequences and real-time applications. This is a trade-off between speed and memory, and its drawbacks can be more complex code and restricting fancier inference schemes, like beam-search, etc. KV caching is a popular method for speeding up LLM inference, making it possible to run them on consumer hardware, and now you know how it works too!
