Grabette: an open system to record robot-manipulation data
Grabette: an open system to record robot-manipulation data.
And build a shared dataset, together.
Record your own manipulation tasks in minutes with a handheld gripper, turn them into robot-ready datasets automatically, and help grow an open, collaborative dataset for robot learning.
The bottleneck isn’t the model. It’s the data.
Robot learning has a supply problem. We have capable policy architectures (transformer-based VLAs, diffusion and flow-matching policies, and even world models) and the GPUs to train them. What we lack is large, diverse, real-world manipulation data.
Teleoperating a robot to collect it can be expensive and demanding: first of all, it requires a robot. And depending on the teleoperation method, data collection can be tedious for the user if it takes hours and involve significant hardware and logistical challenges. That is difficult to scale with the wide variety of tasks and environnements required.
But you don't need a robot to collect robot data. Just a human hand, a gripper, a camera, and a way to recover the 6-DoF trajectory of what the hand did. Capture the demonstration and you have data a robot can learn from.
That's what we're releasing today: Grabette, an open, low-cost system for recording manipulation data. Pick it up, record a task with your own hand, and get back a clean, robot-ready dataset. No robot, no lab, no teleop rig.
And that's the bigger goal: if recording a demonstration is as easy as shooting a video, anyone can contribute. We want Grabette to seed a large, open, collaborative manipulation dataset. One no single lab could ever build alone.
Standing on the shoulders of UMI
Grabette is directly inspired by the Universal Manipulation Interface (UMI) from Stanford: a handheld gripper with a fisheye camera that records demonstrations "in the wild", recovers camera trajectories with SLAM, and trains visuomotor policies from them.
UMI proved the recipe works. Other (closed source) devices exists like Agibot's MEgo gripper, Genrobot's DAS gripper and Sunday Robotics skill capture glove. Our goal was to make it effortless to use, to get the barrier from "I have a task" to "I have a trained model" as low as possible.
Grabette is built into the modern open ecosystem: LeRobot for datasets, the Hugging Face Hub for sharing, and a processing pipeline you run from your browser with nothing to install. Grabette is something anyone can build on a workbench, use in the field, and contribute data from.
Meet Grabette
We have been developing Grabette for months, and we feel it has become usable enough to share. We are excited to share it now with you!

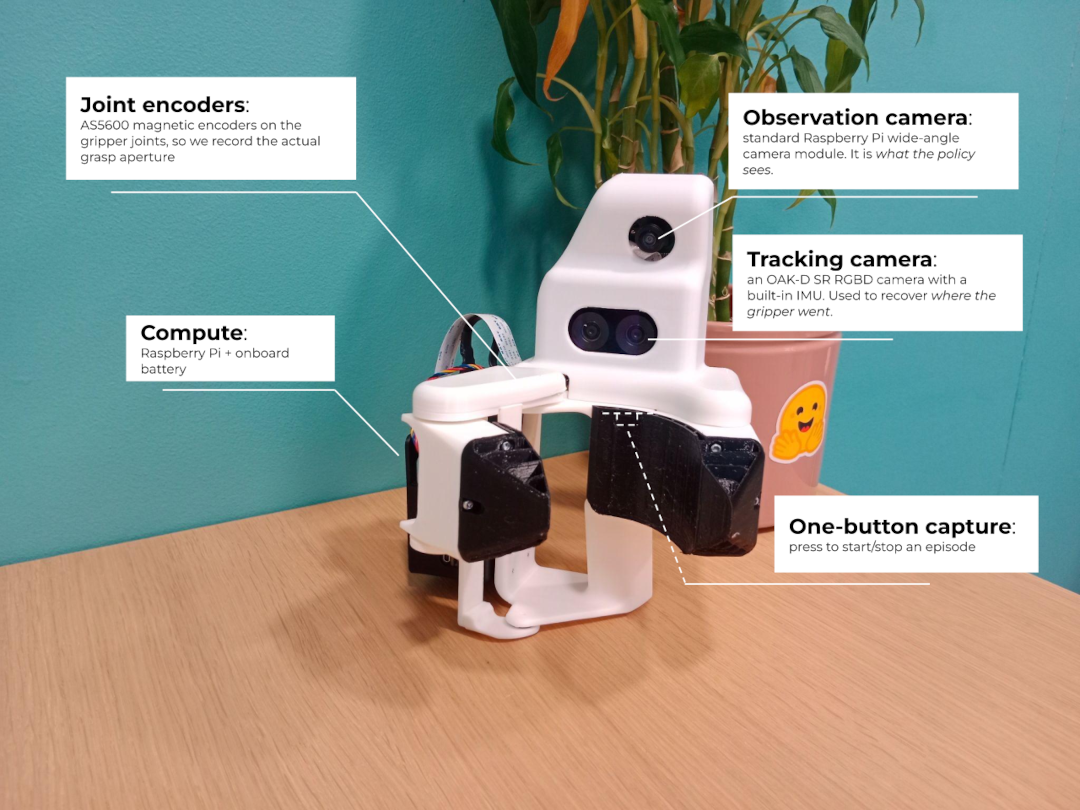

Grabette is a handheld gripper instrumented with everything needed to reconstruct a manipulation demonstration.
It carries two cameras, each with a distinct job. Splitting the two roles is deliberate: the cheap wide fisheye gives the policy the context-rich, wrist-camera-style view it needs, while the RGBD camera does the heavy lifting of robust 6-DoF tracking.
And while Grabette records data during tasks performed by a user, it relies on its robotic counterpart to execute the movements it has learned after training. So, meet Gripette, the robotic arm end-effector twin of Grabette.
The family shares the same hardware DNA:
Grabette, the handheld demonstration device (camera + IMU + gripper, BOM cost ~490€)
Gripette, the motorized gripper (camera + two servomotors, BOM cost ~120€) that closes the loop on a real or simulated robot arm

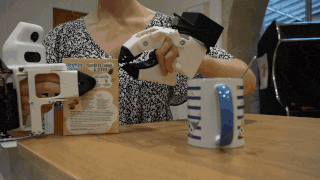

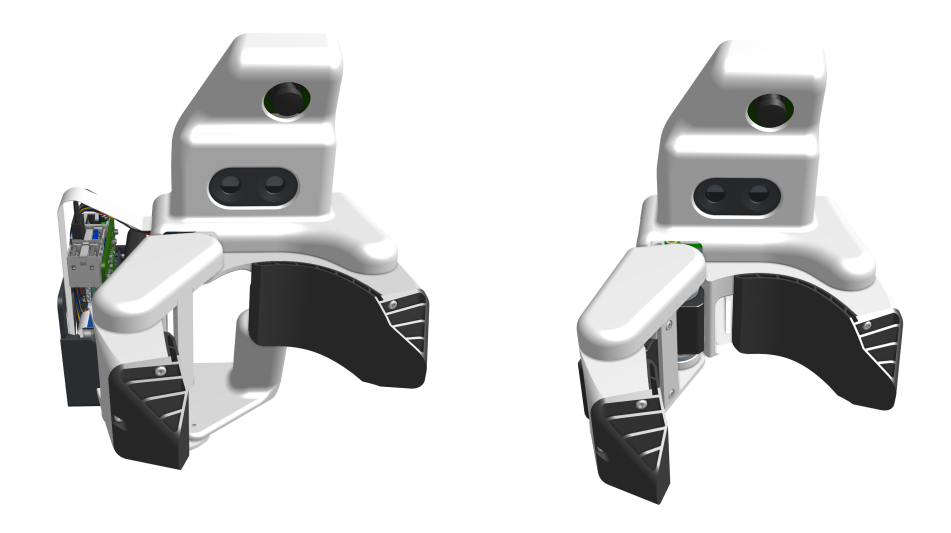

Grabette hand held recording device (left) and Gripette robot gripper (right)
Built for everyone
Everything is open source
Hardware: CAD and production files for Grabette and Gripette
Capture service: the on-device Raspberry Pi software
Processing pipeline: run locally, or online via our Hugging Face Space
Example downstream stack: stock LeRobot training + the OpenArm evaluation, as a reference
Components. Standard sensors you can buy, no closed pipeline, no fork lock-in. A Raspberry Pi, a standard Pi camera, an off-the-shelf OAK-D depth camera, magnetic encoders. The whole point is that anyone can build one from parts you can just order.
Robot-agnostic by design. Nothing in the capture or the data format assumes a particular arm. Demonstrations are stored as camera-local 6-DoF cartesian pose plus gripper state, the output is a standard LeRobot dataset on the Hugging Face Hub, so the same data can drive different robots and different learning methods. You will still need the matching Gripette gripper on your arm though.
From your hand to a dataset, in two steps
This release enables anyone to go from "I want to demonstrate a task" to "I have a training-ready dataset" quickly and without prior expertise.

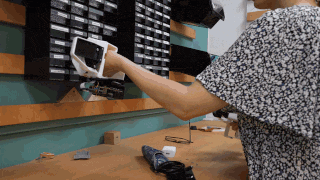

1. Record

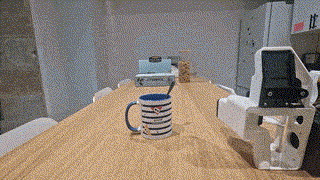

Press the button, and data from the observation camera, the tracking camera (color, depth, and IMU), and the gripper’s encoder joint values are recorded simultaneously, using a single shared clock to ensure proper synchronization. Press the button again to stop the episode, and the data is saved locally on the Raspberry Pi.
2. Process, directly in your browser

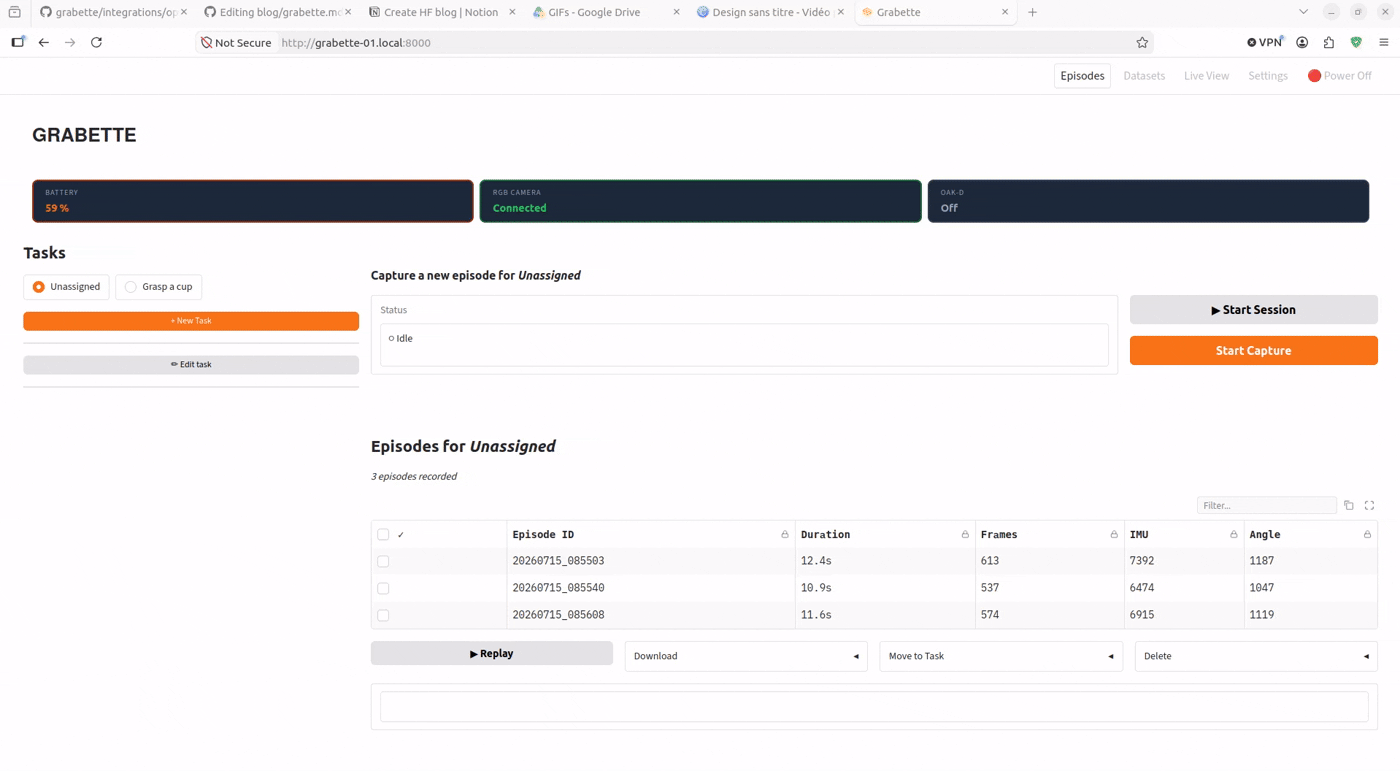

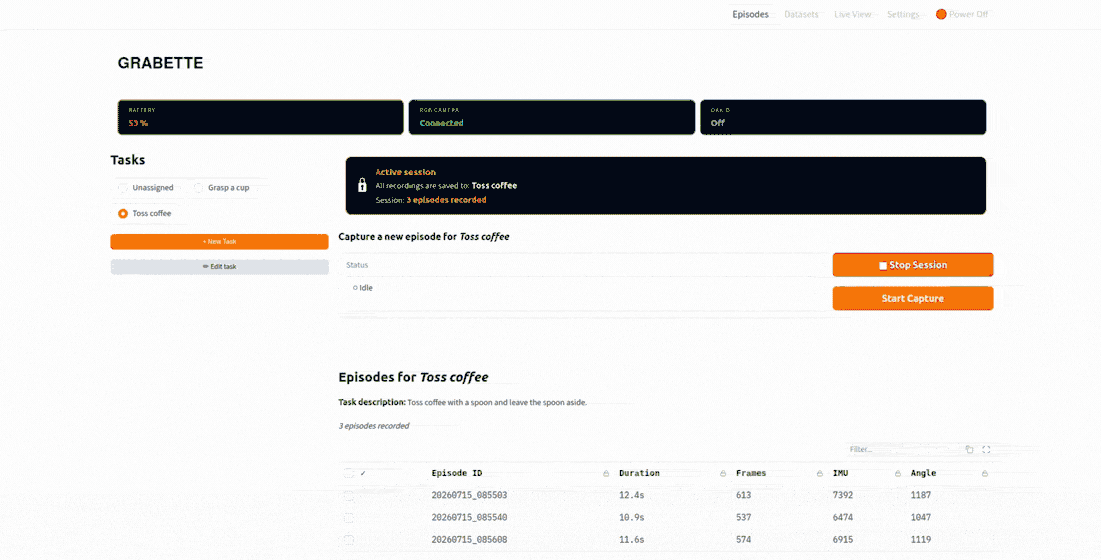

Open the Grabette dashboard in your browser. Select the episodes you want to add to the dataset, and with one click, post-processing begins.
The episodes are uploaded to the HF Hub
The grabette-slam space performs SLAM using RTAB-MAP library and verifies that the trajectory is correct (with no jumps or loss of tracking)
The episodes are converted to LeRobot format
A new dataset is uploaded to your space, where you can view the data for each episode using the Le Robot visualizer
Everything is now ready to start training!
What can you do with the data? Here’s one example.
A dataset is only interesting if it trains something. So, to show the loop end-to-end, we ship a complete example. But to be clear, this is an example of what is enables, not the product: the release is the recording system. Your Grabette data works with any method that consumes LeRobot datasets.

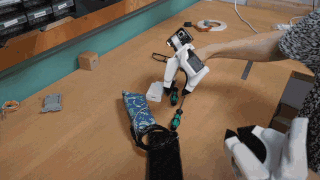

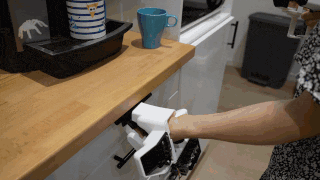

Our example takes 200 recorded demonstrations such as :

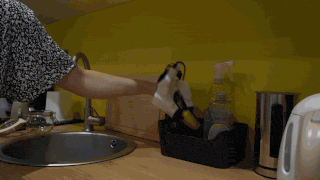

and:
Trains a policy with the LeRobot stack — a Diffusion Policy (ResNet18 + SpatialSoftmax encoder, DDIM scheduler, 6-D rotation actions) that fits on a single consumer GPU.

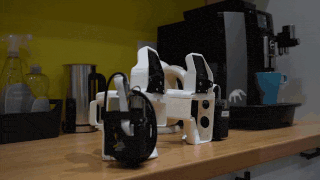

Evaluates it on a OpenArm 7-DoF arm with the Gripette gripper, driven over a gRPC API, with this result :
Now it's your turn
What's next
This release is only the start of the project! Grabette will keep evolving. We already have more coming, including Casquette, a head-mounted POV device to complement Grabette for egocentric capture (still a work in progress). But the most important next step isn’t only ours, it’s also yours: start recording, and let’s build the dataset together.
👉 Build a Grabette (GitHub) · Process your data (HF Space) · Contribute to the dataset
Built with ❤️ by Pollen Robotics.
