Introduction

Speech-to-Speech (S2S) is an exciting new project from Hugging Face that combines several advanced models to create a seamless, almost magical experience: you speak, and the system responds with a synthesized voice.

The project implements a cascaded pipeline leveraging models available through the Transformers library on the Hugging Face hub. The pipeline consists of the following components:

1. Voice Activity Detection (VAD)

2. Speech to Text (STT)

3. Language Model (LM)

4. Text to Speech (TTS)

What's more, S2S has multi-language support! It currently supports English, French, Spanish, Chinese, Japanese, and Korean. You can run the pipeline in single-language mode or use the auto flag for automatic language detection. Check out the repo for more details here.

> 👩🏽‍💻: That's all amazing, but how do I run S2S?
> 🤗: Great question!

Running Speech-to-Speech requires significant computational resources. Even on a high-end laptop you might encounter latency issues, particularly when using the most advanced models. While a powerful GPU can mitigate these problems, not everyone has the means (or desire!) to set up their own hardware.

This is where Hugging Face's Inference Endpoints (IE) come into play. Inference Endpoints allow you to rent a virtual machine equipped with a GPU (or other hardware you might need) and pay only for the time your system is running, providing an ideal solution for deploying performance-heavy applications like Speech-to-Speech.

In this blog post, we’ll guide you step by step to deploy Speech-to-Speech to a Hugging Face Inference Endpoint. This is what we'll cover:

• Understanding Inference Endpoints and a quick overview of the different ways to setup IE, including a custom container image (which is what we'll need for S2S)

• Building a custom docker image for S2S

• Deploying the custom image to IE and having some fun with S2S!

Inference Endpoints

Inference Endpoints provide a scalable and efficient way to deploy machine learning models. These endpoints allow you to serve models with minimal setup, leveraging a variety of powerful hardware. Inference Endpoints are ideal for deploying applications that require high performance and reliability, without the need to manage underlying infrastructure.

Here's a few key features, and be sure to check out the documentation for more:

• Simplicity - You can be up and running in minutes thanks to IE's direct support of models in the Hugging Face hub.

• Scalability - You don't have to worry about scale, since IE scales automatically, including to zero, in order to handle varying loads and save costs.

• Customization: You can customize the setup of your IE to handle new tasks. More on this below.

Inference Endpoints supports all of the Transformers and Sentence-Transformers tasks, but can also support custom tasks. These are the IE setup options:

1. Pre-built Models: Quickly deploy models directly from the Hugging Face hub.

2. Custom Handlers: Define custom inference logic for more complex pipelines.

3. Custom Docker Images: Use your own Docker images to encapsulate all dependencies and custom code.

For simpler models, options 1 and 2 are ideal and make deploying with Inference Endpoints super straightforward. However, for a complex pipeline like S2S, you will need the flexibility of option 3: deploying our IE using a custom Docker image.

This method not only provides more flexibility but also improved performance by optimizing the build process and gathering necessary data. If you’re dealing with complex model pipelines or want to optimize your application deployment, this guide will offer valuable insights.

Deploying Speech-to-Speech on Inference Endpoints

Let's get into it!

Building the custom Docker image

To begin creating a custom Docker image, we started by cloning Hugging Face’s default Docker image repository. This serves as a great starting point for deploying machine learning models in inference tasks.

git clone https://github.com/huggingface/huggingface-inference-toolkit

Why Clone the Default Repository?

• Solid Foundation: The repository provides a pre-optimized base image designed specifically for inference workloads, which gives a reliable starting point.

• Compatibility: Since the image is built to align with Hugging Face’s deployment environment, this ensures smooth integration when you deploy your own custom image.

• Ease of Customization: The repository offers a clean and structured environment, making it easy to customize the image for the specific requirements of your application.

You can check out all of our changes here

Customizing the Docker Image for the Speech-to-Speech Application

With the repository cloned, the next step was tailoring the image to support our Speech-to-Speech pipeline.

1. Adding the Speech-to-Speech Project

To integrate the project smoothly, we added the speech-to-speech codebase and any required datasets as submodules. This approach offers better version control, ensuring the exact version of the code and data is always available when the Docker image is built.

By including data directly within the Docker container, we avoid having to download it each time the endpoint is instantiated, which significantly reduces startup time and ensures the system is reproducible. The data is stored in a Hugging Face repository, which provides easy tracking and versioning.

git submodule add https://github.com/huggingface/speech-to-speech.git
git submodule add https://huggingface.co/andito/fast-unidic

1. Optimizing the Docker Image

Next, we modified the Dockerfile to suit our needs:

• Streamlining the Image: We removed packages and dependencies that weren’t relevant to our use case. This reduces the image size and cuts down on unnecessary overhead during inference.

• Installing Requirements: We moved the installation of requirements.txt from the entry point to the Dockerfile itself. This way, the dependencies are installed when building the Docker image, speeding up deployment since these packages won’t need to be installed at runtime.

1. Deploying the Custom Image

Once the modifications were in place, we built and pushed the custom image to Docker Hub:

DOCKER_DEFAULT_PLATFORM="linux/amd64" docker build -t speech-to-speech -f dockerfiles/pytorch/Dockerfile .
docker tag speech-to-speech andito/speech-to-speech:latest
docker push andito/speech-to-speech:latest

With the Docker image built and pushed, it’s ready to be used in the Hugging Face Inference Endpoint. By using this pre-built image, the endpoint can launch faster and run more efficiently, as all dependencies and data are pre-packaged within the image.

Setting up an Inference Endpoint

Using a custom docker image just requires a slightly different configuration, feel free to check out the documentation. We will walk through the approach to do this in both the GUI and the API.

Pre-Steps

1. Login: https://huggingface.co/login

2. Request access to meta-llama/Meta-Llama-3.1-8B-Instruct

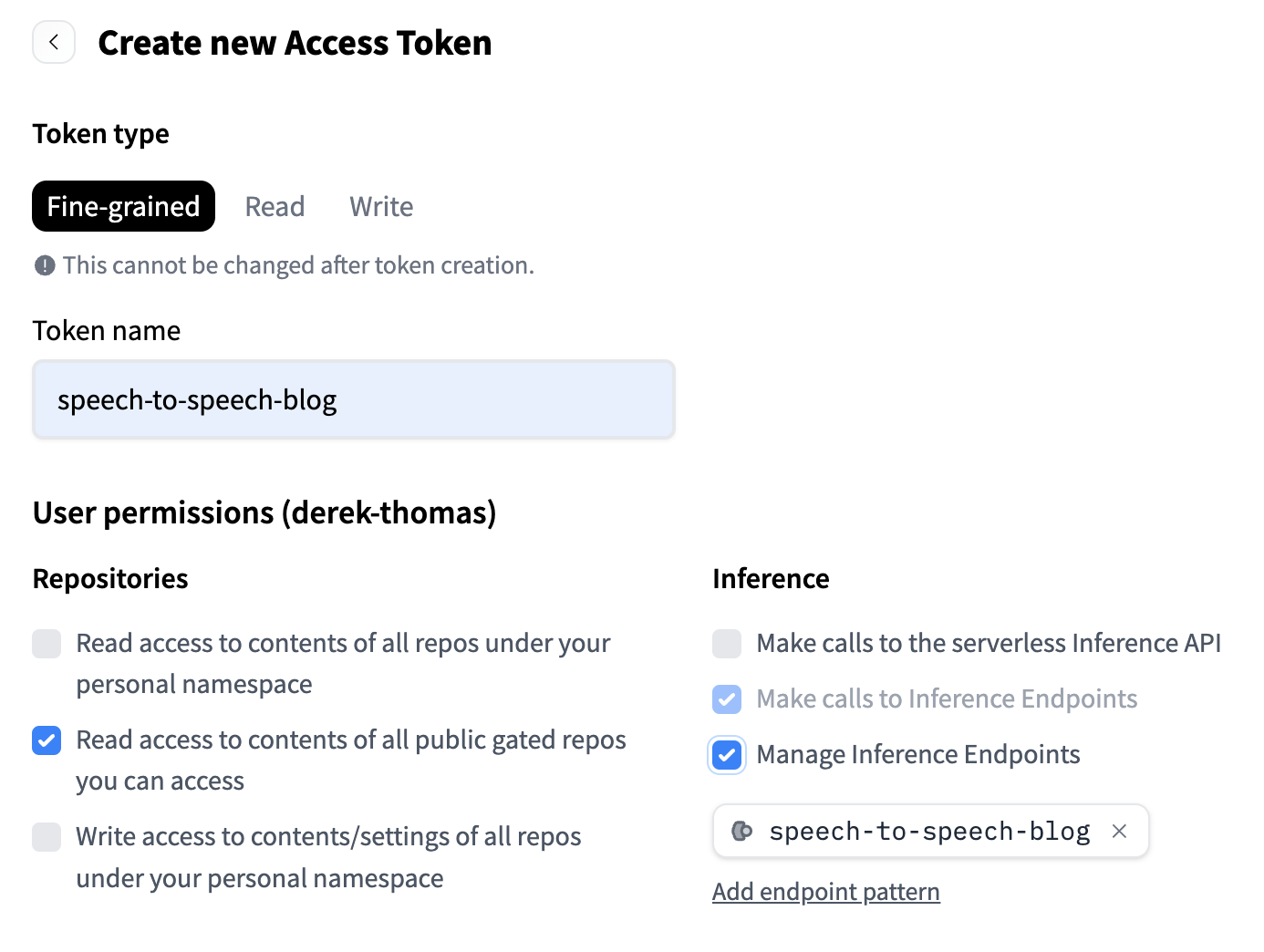

3. Create a Fine-Grained Token: https://huggingface.co/settings/tokens/new?tokenType=fineGrained



   • Select access to gated repos

   • If you are using the API make sure to select permissions to Manage Inference Endpoints

Inference Endpoints GUI

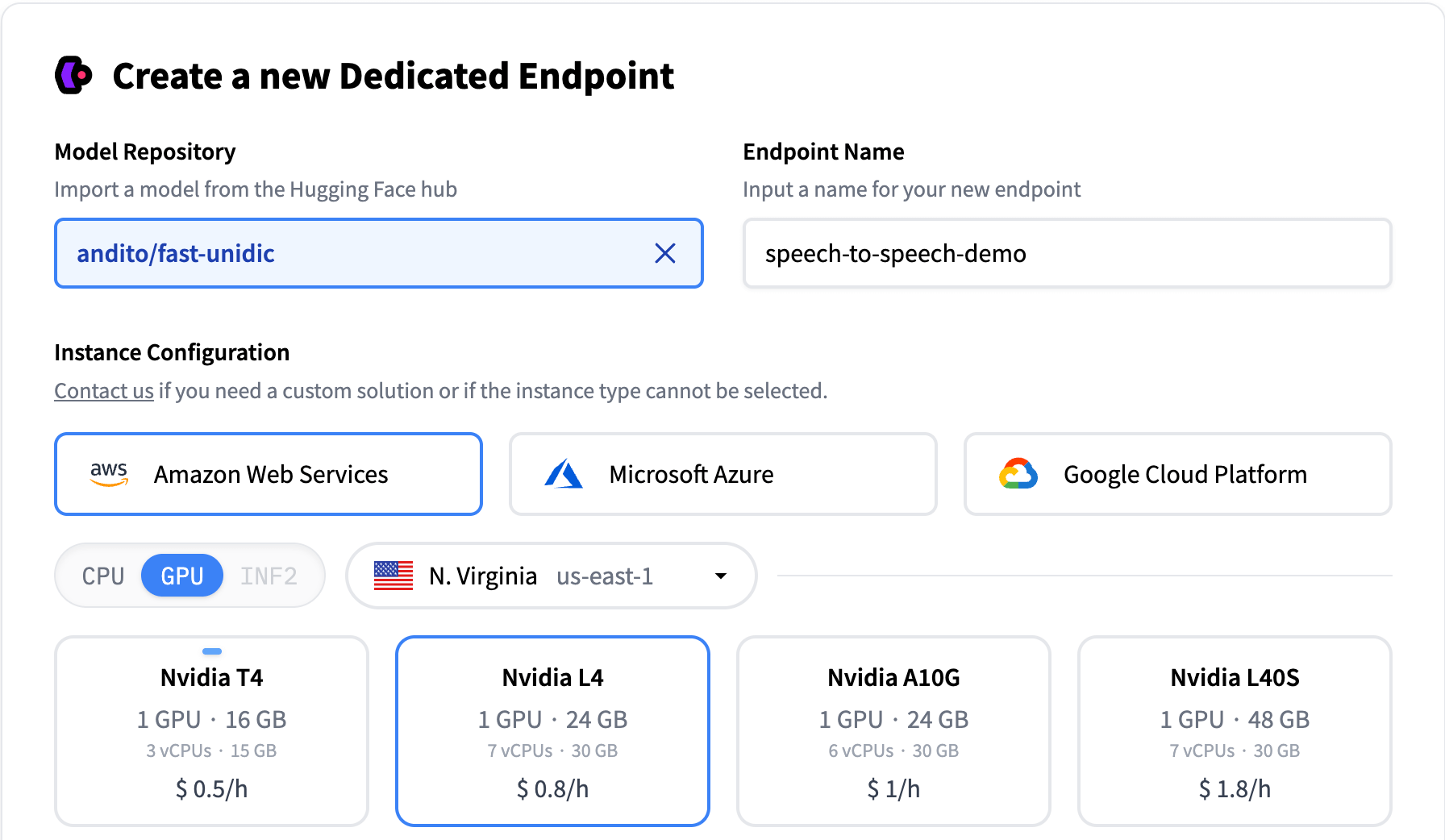

1. Navigate to https://ui.endpoints.huggingface.co/new

2. Fill in the relevant information

   • Model Repository - andito/s2s

   • Model Name - Feel free to rename if you don't like the generated name

     • e.g. speech-to-speech-demo

     • Keep it lower-case and short

   • Choose your preferred Cloud and Hardware - We used AWS GPU L4

     • It's only $0.80 an hour and is big enough to handle the models

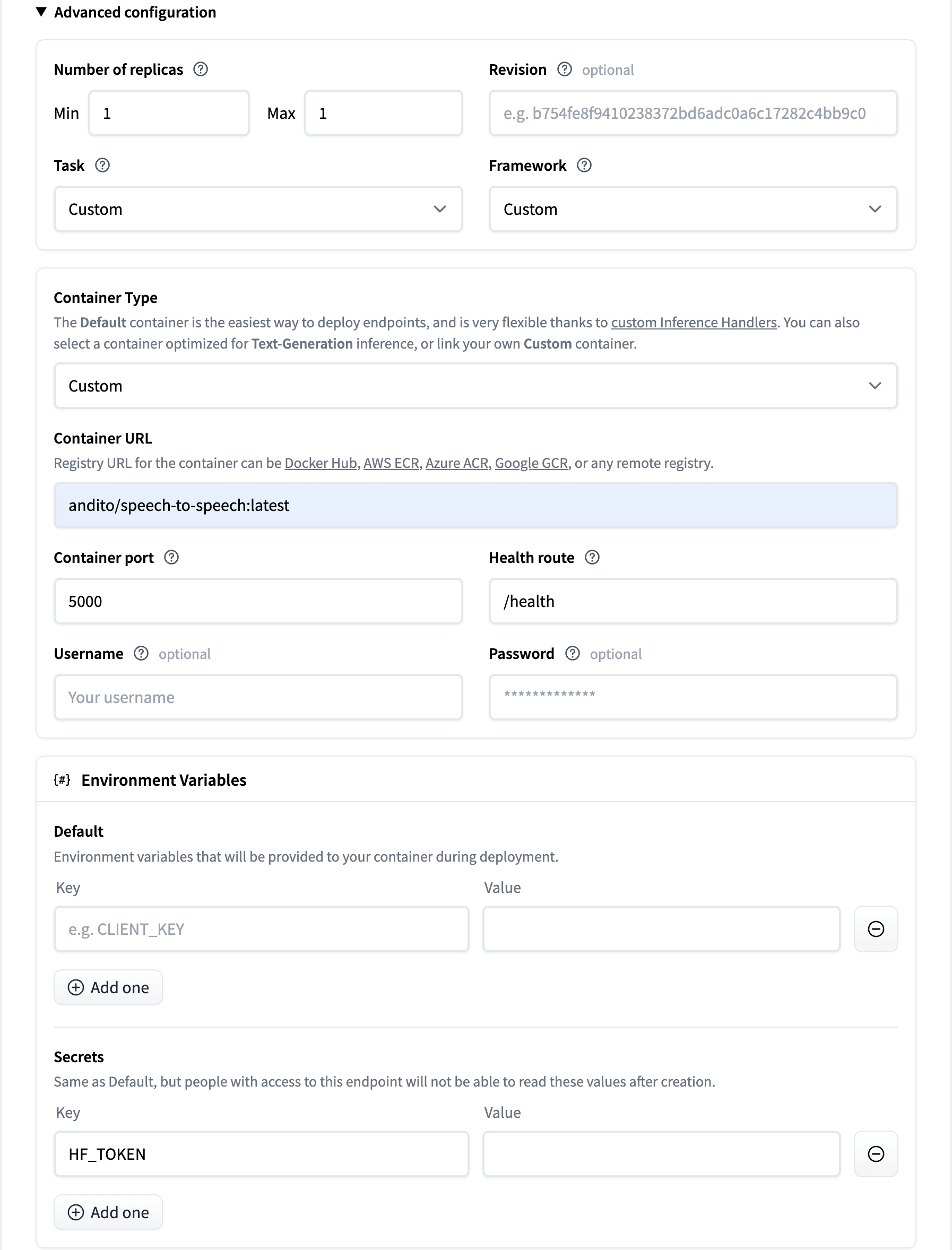

   • Advanced Configuration (click the expansion arrow ➤)

     • Container Type - Custom

     • Container Port - 80

     • Container URL - andito/speech-to-speech:latest

     • Secrets - HF_TOKEN|<your token here>

Click to show images

1. Click Create Endpoint

The Model Repository doesn't actually matter since the models are specified and downloaded in the container creation, but Inference Endpoints requires a model, so feel free to pick a slim one of your choice.

You need to specify HF_TOKEN because we need to download gated models in the container creation stage. This won't be necessary if you use models that aren't gated or private.

The current huggingface-inference-toolkit entrypoint uses port 5000 as default, but the inference endpoint expects port 80. You should match this in the Container Port. We already set it in our dockerfile, but beware if making your own from scratch!

Inference Endpoints API

Here we will walk through the steps for creating the endpoint with the API. Just use this code in your python environment of choice.

Make sure to use 0.25.1 or greater

pip install huggingface_hub>=0.25.1

Use a token that can write an endpoint (Write or Fine-Grained)

from huggingface_hub import login
login()

from huggingface_hub import create_inference_endpoint, get_token
endpoint = create_inference_endpoint(
    # Model Configuration
    "speech-to-speech-demo",
    repository="andito/s2s",
    framework="custom",
    task="custom",
    # Security
    type="protected",
    # Hardware
    vendor="aws",
    accelerator="gpu",
    region="us-east-1",
    instance_size="x1",
    instance_type="nvidia-l4",
    # Image Configuration
    custom_image={
        "health_route": "/health",
        "url": "andito/speech-to-speech:latest", # Pulls from DockerHub
        "port": 80
    },
    secrets={'HF_TOKEN': get_token()}
)

# Optional
endpoint.wait()

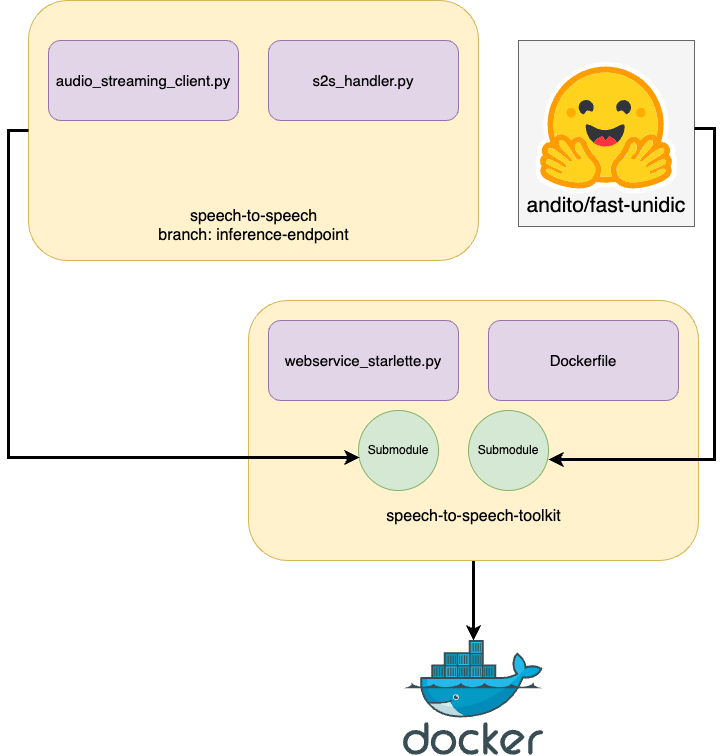

Overview

Major Componants

• Speech To Speech

  • This is a Hugging Face Library, we put some inference-endpoint specific files in the inference-endpoint branch which will be merged to main soon.

• andito/s2s or any other repository. This is not needed for us since we have the models in the container creation stage, but the inference-endpoint requires a model, so we pass a repository that is slim.

• andimarafioti/speech-to-speech-toolkit.

  • This was forked from huggingface/huggingface-inference-toolkit to help us build the Custom Container configured as we desire

Building the webserver

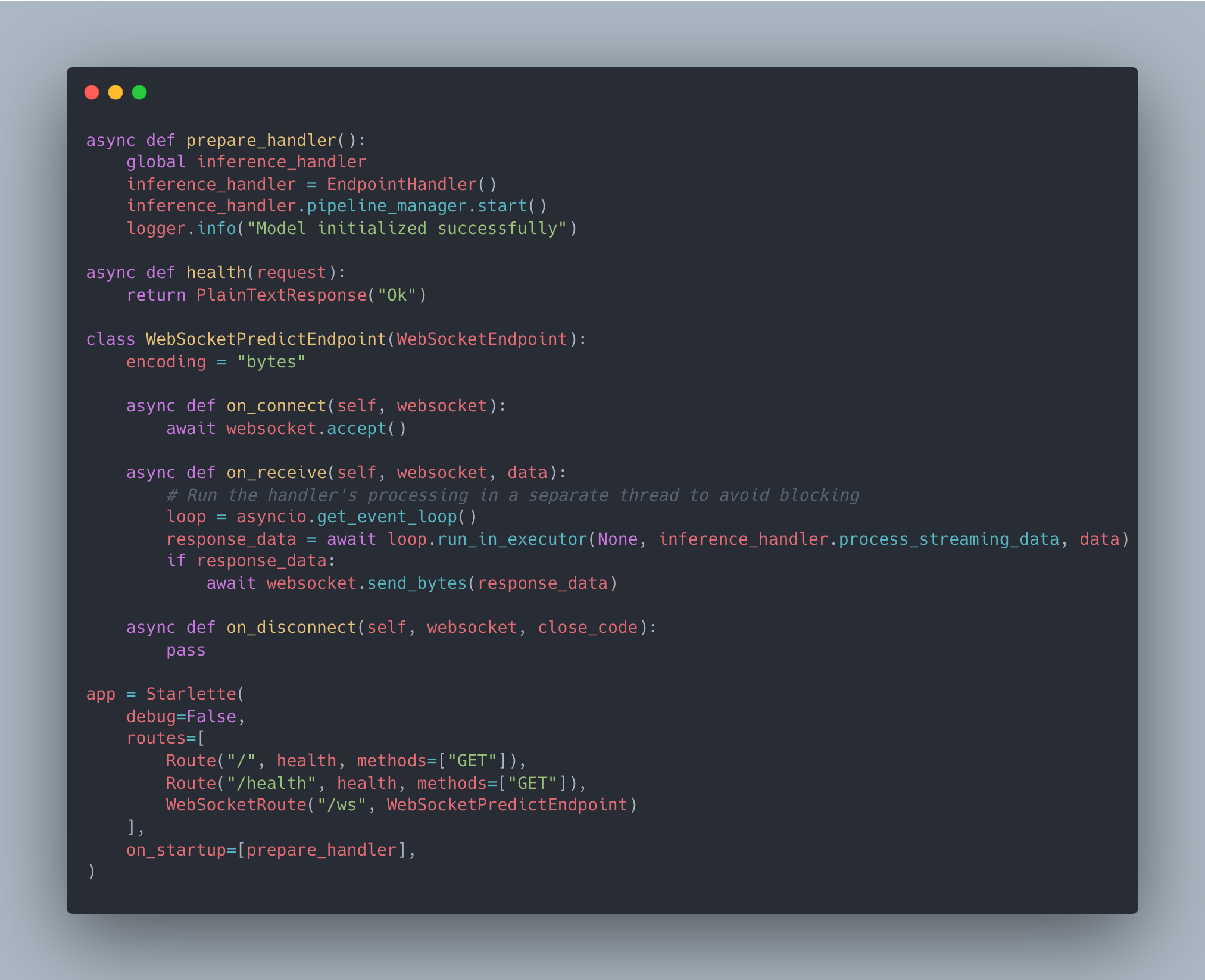

To use the endpoint, we will need to build a small webservice. The code for it is done on s2s_handler.py in the speech_to_speech library which we use for the client and webservice_starlette.py in thespeech_to_speech_inference_toolkit which we used to build the docker image. Normally, you would only have a custom handler for an endpoint, but since we want to have a really low latency, we also built the webservice to support websocket connections instead of normal requests. This sounds intimidating at first, but the webservice is only 32 lines of code!

This code will run prepare_handler on startup, which will initialize all the models and warm them up. Then, each message will be processed by inference_handler.process_streaming_data

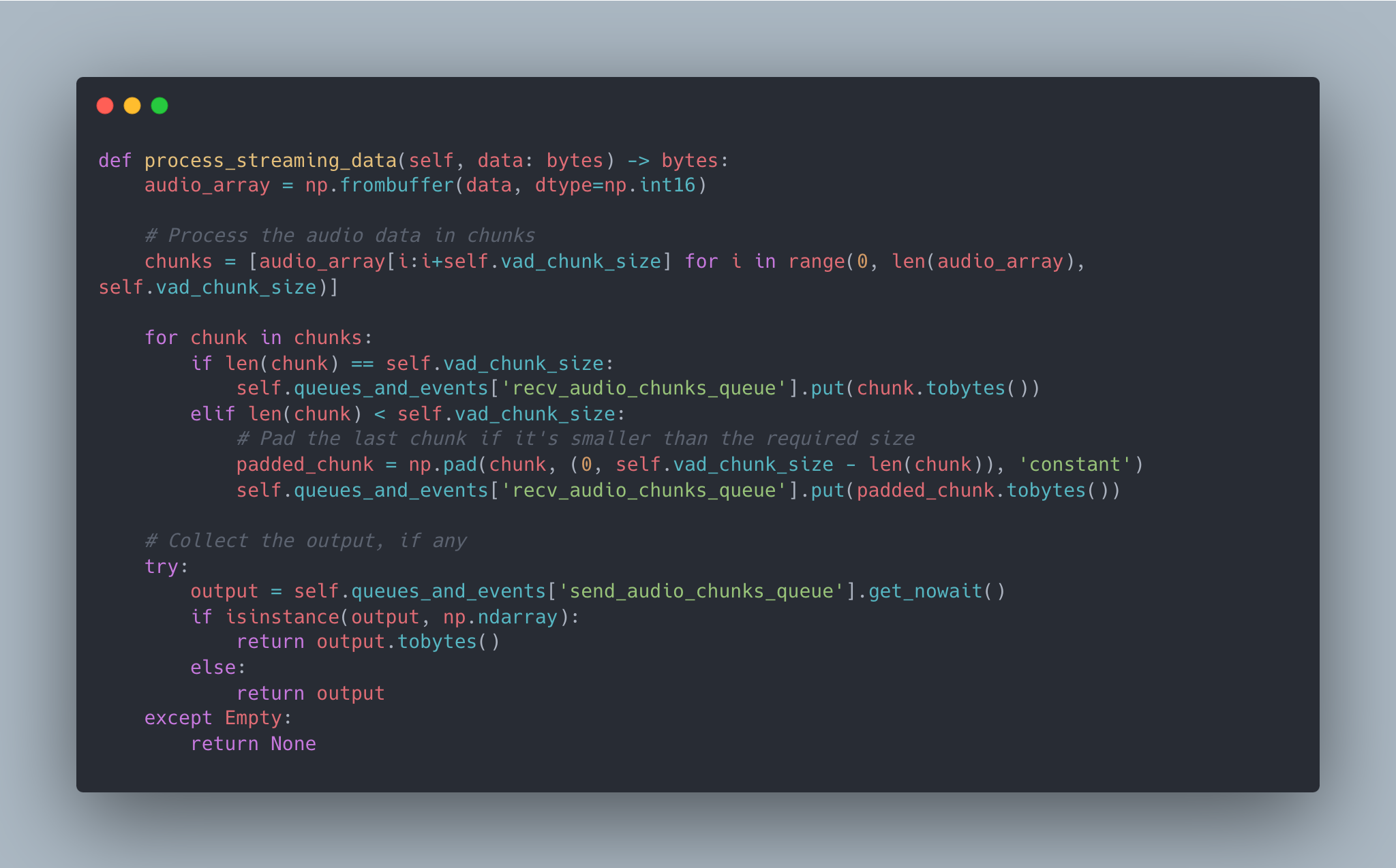

This method simply receives the audio data from the client, chunks it into small parts for the VAD, and submits it to a queue for processing. Then it checks the output processing queue (the spoken response from the model!) and returns it if there is something. All of the internal processing is handled by Hugging Face's speech_to_speech library.

Custom handler custom client

The webservice receives and returns audio. But there is still a big missing piece, how do we record and play back the audio? For that, we created a client that connects to the service. The easiest is to divide the analysis in the connection to the webservice and the recording/playing of audio.

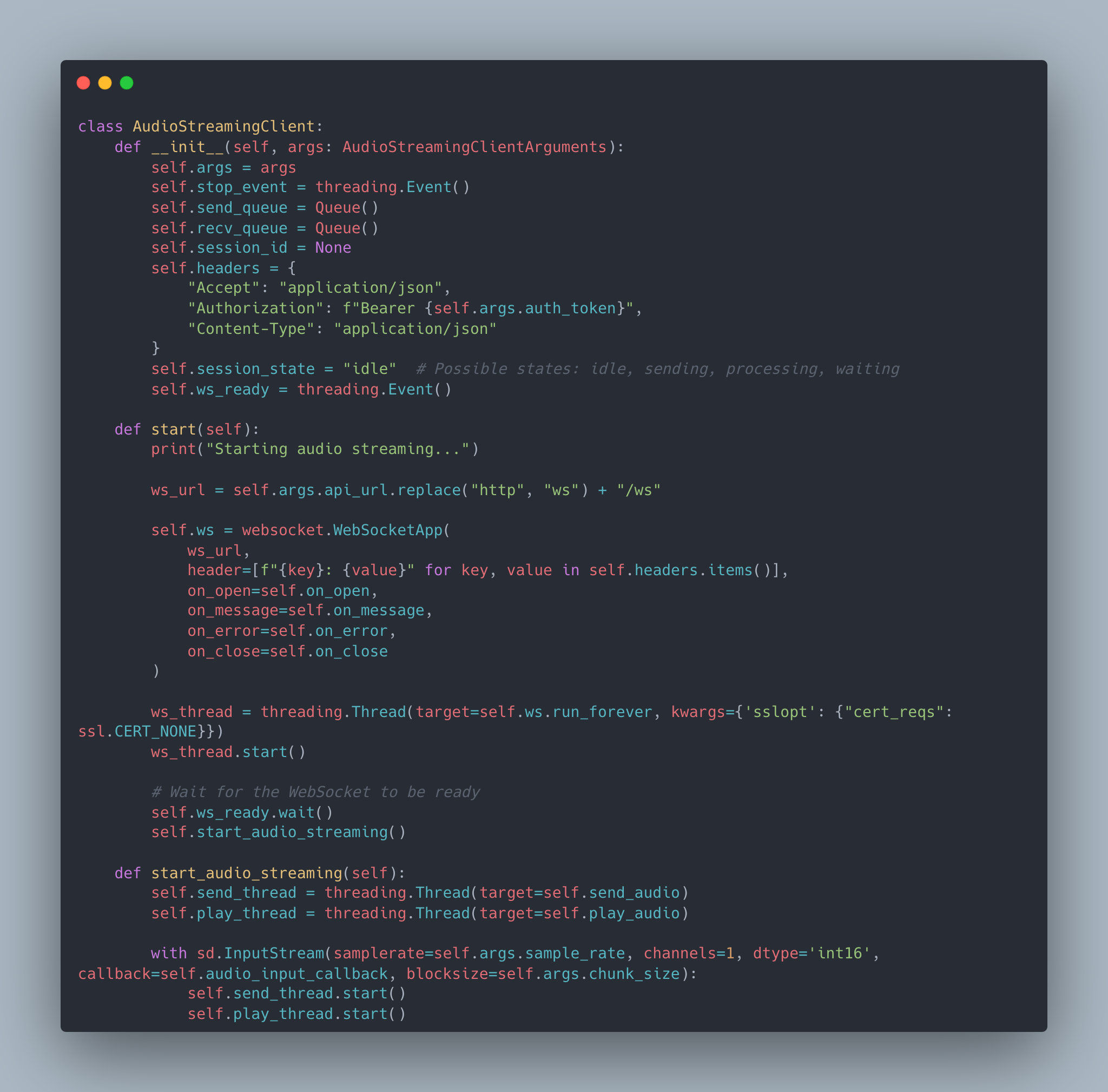

Initializing the webservice client requires setting a header for all messages with our Hugging Face Token. When initializing the client, we set what we want to do on common messages (open, close, error, message). This will determine what our client does when the server sends it messages.

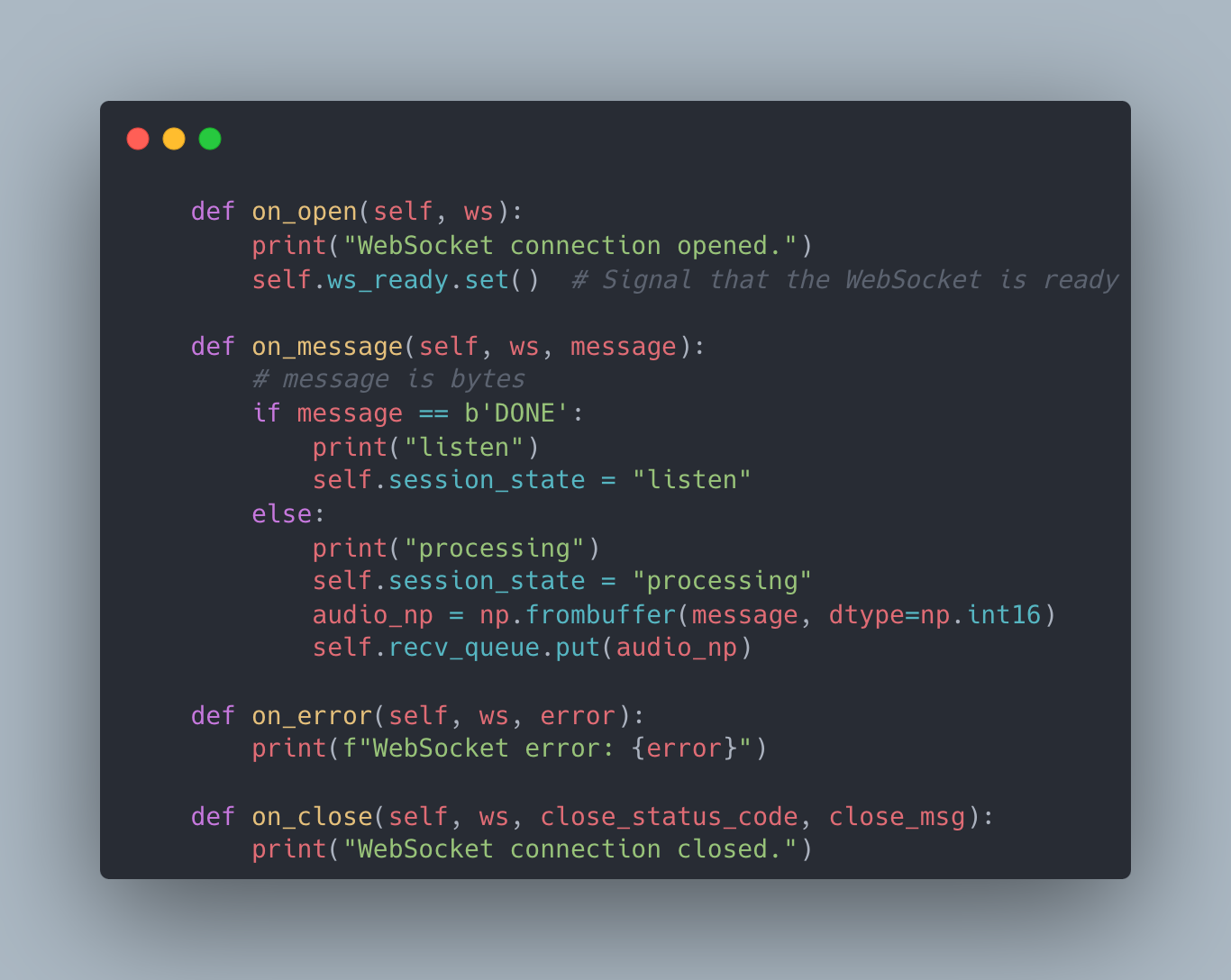

We can see that the reactions to the messages are straight forward, with the on_message being the only method with more complexity. This method understands when the server is done responding and starts 'listening' back to the user. Otherwise, it puts the data from the server in the playback queue.

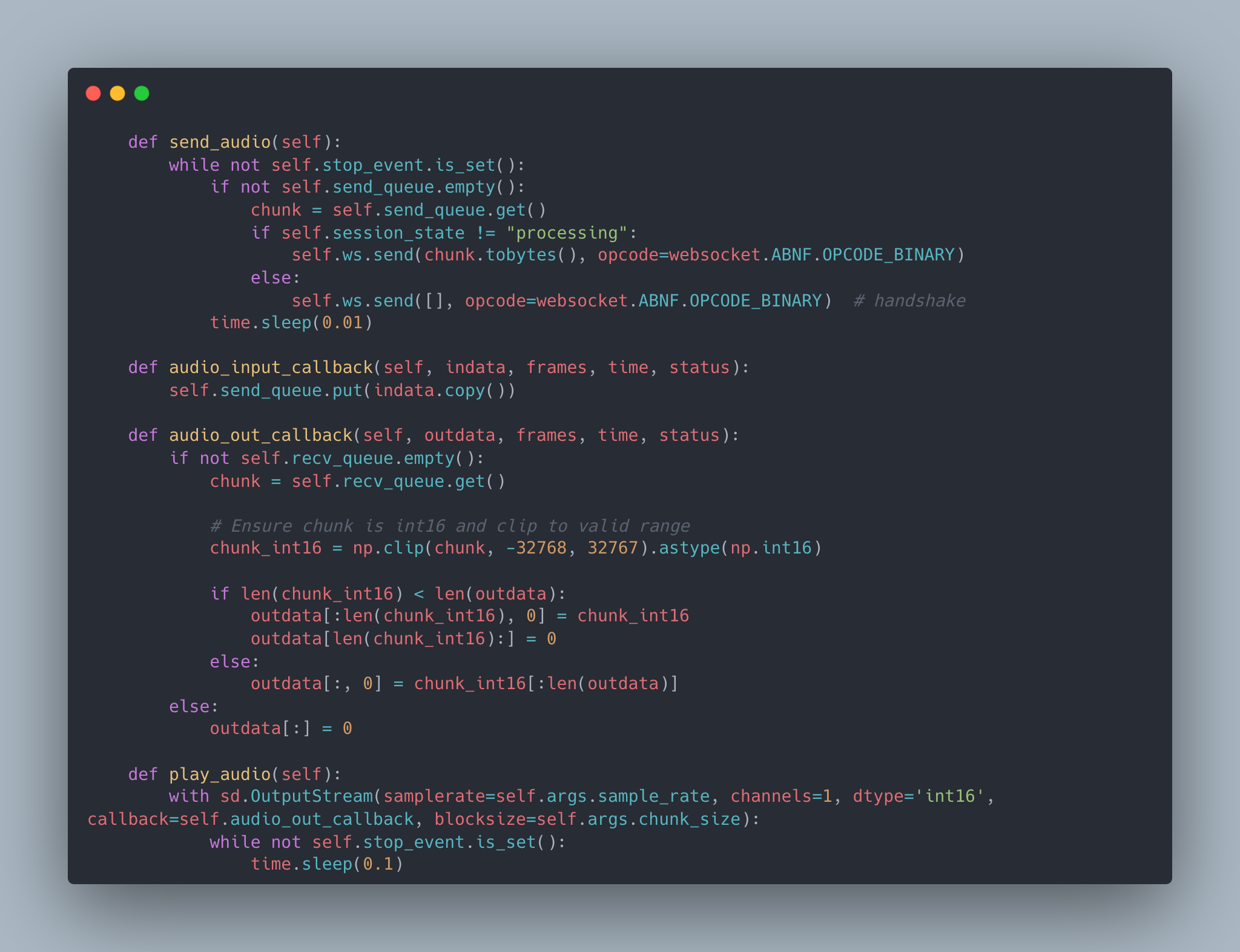

The client's audio section has 4 tasks:

1. Record the audio

2. Submit the audio recordings

3. Receive the audio responses from the server

4. Playback the audio responses

Conclusion

In this post, we walked through the steps of deploying the Speech-to-Speech (S2S) pipeline on Hugging Face Inference Endpoints using a custom Docker image. We built a custom container to handle the complexities of the S2S pipeline and demonstrated how to configure it for scalable, efficient deployment. Hugging Face Inference Endpoints make it easier to bring performance-heavy applications like Speech-to-Speech to life, without the hassle of managing hardware or infrastructure.

If you're interested in trying it out or have any questions, feel free to explore the following resources:

• Speech-to-Speech GitHub Repository

• Speech-to-Speech Inference Toolkit

• Base Inference Toolkit

• Hugging Face Inference Endpoints Documentation

Have issues or questions? Open a discussion on the relevant GitHub repository, and we’ll be happy to help!
