Meta Llama 3.1 is the latest open LLM from Meta, released in July 2024. Meta Llama 3.1 comes in three sizes: 8B for efficient deployment and development on consumer-size GPU, 70B for large-scale AI native applications, and 405B for synthetic data, LLM as a Judge or distillation; among other use cases. Some of its key features include: a large context length of 128K tokens (vs original 8K), multilingual capabilities, tool usage capabilities, and a more permissive license.

In this blog you will learn how to programmatically deploy meta-llama/Meta-Llama-3.1-405B-Instruct-FP8, the FP8 quantized variant of meta-llama/Meta-Llama-3.1-405B-Instruct, in a Google Cloud A3 node with 8 x H100 NVIDIA GPUs on Vertex AI with Text Generation Inference (TGI) using the Hugging Face purpose-built Deep Learning Containers (DLCs) for Google Cloud.

Alternatively, you can deploy meta-llama/Meta-Llama-3.1-405B-Instruct-FP8 without writing any code directly from the Hub or from Vertex Model Garden!

This blog will cover:

Introduction to Vertex AI

1. Requirements for Meta Llama 3.1 Models on Google Cloud

2. Setup Google Cloud for Vertex AI

3. Register the Meta Llama 3.1 405B Model on Vertex AI

4. Deploy Meta Llama 3.1 405B on Vertex AI

5. Run online predictions with Meta Llama 3.1 405B

   1. Via Python

      1. Within the same session

      2. From a different session

   2. Via the Vertex AI Online Prediction UI

6. Clean up resources

Conclusion

Lets get started! 🚀 Alternatively, you can follow along from this Jupyter Notebook.

Introduction to Vertex AI

Vertex AI is a machine learning (ML) platform that lets you train and deploy ML models and AI applications, and customize Large Language Models (LLMs) for use in your AI-powered applications. Vertex AI combines data engineering, data science, and ML engineering workflows, enabling your teams to collaborate using a common toolset and scale your applications using the benefits of Google Cloud.

This blog will be focused on deploying an already fine-tuned model from the Hugging Face Hub using a pre-built container to get real-time online predictions. Thus, we'll demonstrate the use of Vertex AI for inference.

More information at Vertex AI - Documentation - Introduction to Vertex AI.

1. Requirements for Meta Llama 3.1 Models on Google Cloud

Meta Llama 3.1 brings exciting advancements. However, running these models requires careful consideration of your hardware resources. For inference, the memory requirements depend on the model size and the precision of the weights. Here's a table showing the approximate memory needed for different configurations:

FP16

FP8

INT4

8B

16 GB

8 GB

4 GB

70B

140 GB

70 GB

35 GB

405B

810 GB

405 GB

203 GB

Note: The above-quoted numbers indicate the GPU VRAM required just to load the model checkpoint. They don’t include torch reserved space for kernels or CUDA graphs.

As an example, an H100 node (8 H100s with 80GB each) has a total of ~640GB of VRAM, so the 405B model would need to be run in a multi-node setup or run at a lower precision (e.g. FP8), which would be the recommended approach. Read more about it in the Hugging Face Blog for Meta Llama 3.1.

The A3 accelerator-optimized machine series in Google Cloud comes with 8 H100s 80GB NVIDIA GPUs, 208 vCPUs, and 1872 GB of memory. This machine series is optimized for compute and memory intensive, network bound ML training, and HPC workloads. Read more about the A3 machines availability announcement at Announcing A3 supercomputers with NVIDIA H100 GPUs, purpose-built for AI and about the A3 machine series at Compute Engine - Accelerator-optimized machine family.

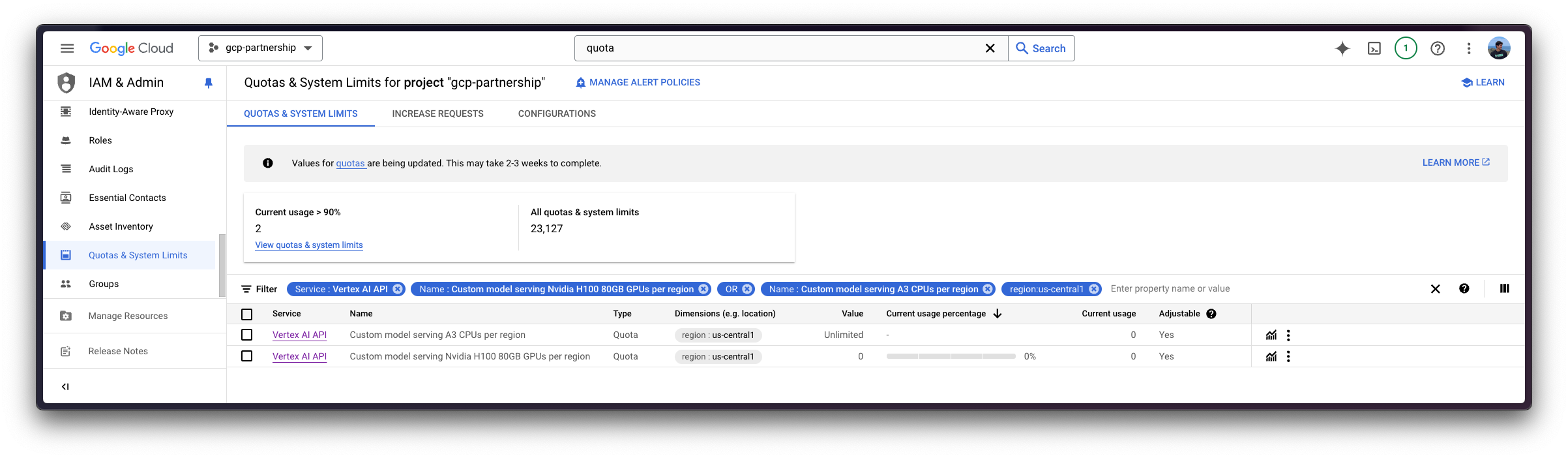

Even if the A3 machines are available within Google Cloud, you will still need to request a custom quota increase in Google Cloud, as those need a specific approval. Note that the A3 machines are only available in some zones, so make sure to check the availability of both A3 High or even A3 Mega per zone at Compute Engine - GPU regions and zones.

In this case, to request a quota increase to use the A3 High GPU machine type you will need to increase the following quotas:

• Service: Vertex AI API and Name: Custom model serving Nvidia H100 80GB GPUs per region set to 8

• Service: Vertex AI API and Name: Custom model serving A3 CPUs per region set to 208

Read more on how to request a quota increase at Google Cloud Documentation - View and manage quotas.

2. Setup Google Cloud for Vertex AI

Before proceeding, we will set the following environment variables for convenience:

%env PROJECT_ID=your-project-id
%env LOCATION=your-region

First you need to install gcloud in your machine following the instructions at Cloud SDK - Install the gcloud CLI; and log in into your Google Cloud account, setting your project and preferred Google Compute Engine region.

gcloud auth login
gcloud config set project $PROJECT_ID
gcloud config set compute/region $LOCATION

Once the Google Cloud SDK is installed, you need to enable the Google Cloud APIs required to use Vertex AI from a Deep Learning Container (DLC) within their Artifact Registry for Docker.

gcloud services enable aiplatform.googleapis.com
gcloud services enable compute.googleapis.com
gcloud services enable container.googleapis.com
gcloud services enable containerregistry.googleapis.com
gcloud services enable containerfilesystem.googleapis.com

Then you will also need to install google-cloud-aiplatform, required to programmatically interact with Google Cloud Vertex AI from Python.

pip install --upgrade --quiet google-cloud-aiplatform

To then initialize it via Python as follows:

import os
from google.cloud import aiplatform

aiplatform.init(project=os.getenv("PROJECT_ID"), location=os.getenv("LOCATION"))

Finally, as the Meta Llama 3.1 models are gated under the meta-llama organization in the Hugging Face Hub, you will need to request access to it and wait for approval, which shouldn't take longer than 24 hours. Then, you need to install the huggingface_hub Python SDK to use the huggingface-cli to log in into the Hugging Face Hub to download those models.

pip install --upgrade --quiet huggingface_hub

Alternatively, you can also skip the huggingface_hub installation and just generate a Hugging Face Fine-grained Token with read-only permissions for meta-llama/Meta-Llama-3.1-405B-Instruct-FP8 or any other model under the meta-llama organization, to be selected under e.g. Repository permissions -> meta-llama/Meta-Llama-3.1-405B-Instruct-FP8 -> Read access to contents of selected repos. And either set that token within the HF_TOKEN environment variable or just provide it manually to the notebook_login method as follows:

from huggingface_hub import notebook_login

notebook_login()

3. Register the Meta Llama 3.1 405B Model on Vertex AI

To register the Meta Llama 3.1 405B model on Vertex AI, you will need to use the google-cloud-aiplatform Python SDK. But before proceeding, you need to first define which DLC you are going to use, which in this case will be the latest Hugging Face TGI DLC for GPU.

As of the current date (August 2024), the latest available Hugging Face TGI DLC, i.e. us-docker.pkg.dev/deeplearning-platform-release/gcr.io/huggingface-text-generation-inference-cu121.2-2.ubuntu2204.py310 uses TGI v2.2. This version comes with support for the Meta Llama 3.1 architecture, which needs a different RoPE scaling method than its predecessor, Meta Llama 3.

To check which Hugging Face DLCs are available in Google Cloud you can either navigate to Google Cloud Artifact Registry and filter by "huggingface-text-generation-inference", or use the following gcloud command:

gcloud container images list --repository="us-docker.pkg.dev/deeplearning-platform-release/gcr.io" | grep "huggingface-text-generation-inference"

Then you need to define the configuration for the container, which are the environment variables that the text-generation-launcher expects as arguments (as per the official documentation), which in this case are the following:

• MODEL_ID the model ID on the Hugging Face Hub, i.e. meta-llama/Meta-Llama-3.1-405B-Instruct-FP8.

• HUGGING_FACE_HUB_TOKEN the read-access token over the gated repository meta-llama/Meta-Llama-3.1-405B-Instruct-FP8, required to download the weights from the Hugging Face Hub.

• NUM_SHARD the number of shards to use i.e. the number of GPUs to use, in this case set to 8 as an A3 instance with 8 x H100 NVIDIA GPUs will be used.

Additionally, as a recommendation you should also define HF_XET_HIGH_PERFORMANCE=1 to enable a faster download speed via the hf_xet utility, as Meta Llama 3.1 405B is around 400 GiB and downloading the weights may take longer otherwise.

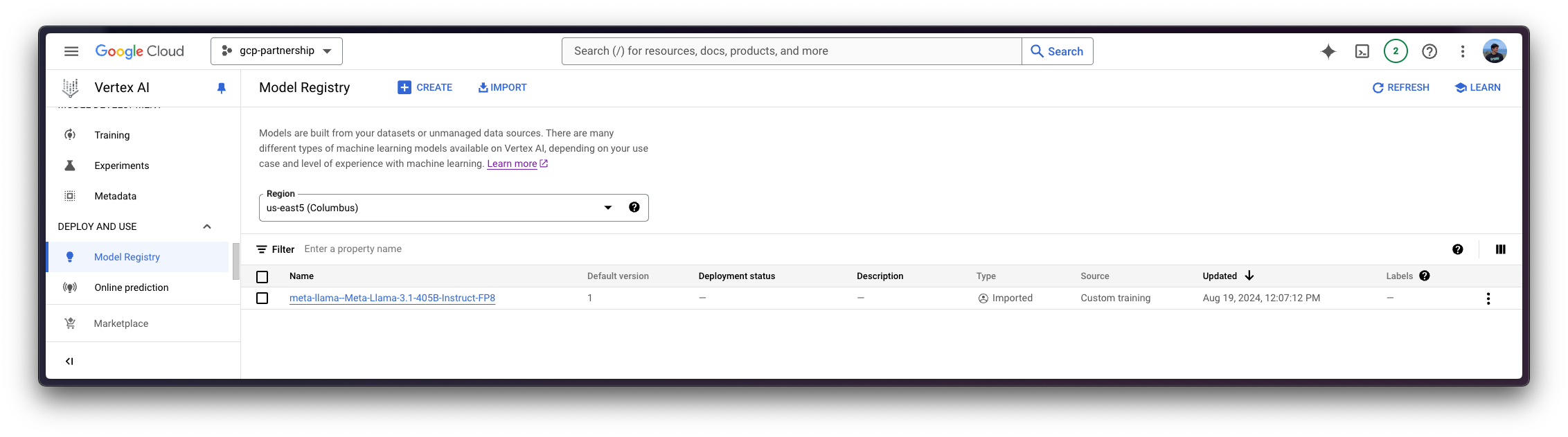

Then you can already register the model within Vertex AI's Model Registry via the google-cloud-aiplatform Python SDK as follows:

from huggingface_hub import get_token

model = aiplatform.Model.upload(
    display_name="meta-llama--Meta-Llama-3.1-405B-Instruct-FP8",
    serving_container_image_uri="us-docker.pkg.dev/deeplearning-platform-release/gcr.io/huggingface-text-generation-inference-cu121.2-2.ubuntu2204.py310",
    serving_container_environment_variables={
        "MODEL_ID": "meta-llama/Meta-Llama-3.1-405B-Instruct-FP8",
        "HUGGING_FACE_HUB_TOKEN": get_token(),
        "HF_XET_HIGH_PERFORMANCE": "1",
        "NUM_SHARD": "8",
    },
)
model.wait()

4. Deploy Meta Llama 3.1 405B on Vertex AI

Once Meta Llama 3.1 405B is registered on Vertex AI Model Registry, then you can create a Vertex AI Endpoint and deploy the model to the endpoint, with the Hugging Face DLC for TGI as the serving container.

As mentioned before, since Meta Llama 3.1 405B in FP8 takes ~400 GiB of disk space, that means we need at least 400 GiB of GPU VRAM to load the model, and the GPUs within the node need to support the FP8 data type. In this case, an A3 instance with 8 x NVIDIA H100 80GB with a total of ~640 GiB of VRAM will be used to load the model while also leaving some free VRAM for the KV Cache and the CUDA Graphs.

endpoint = aiplatform.Endpoint.create(display_name="Meta-Llama-3.1-405B-FP8-Endpoint")

deployed_model = model.deploy(
    endpoint=endpoint,
    machine_type="a3-highgpu-8g",
    accelerator_type="NVIDIA_H100_80GB",
    accelerator_count=8,
)

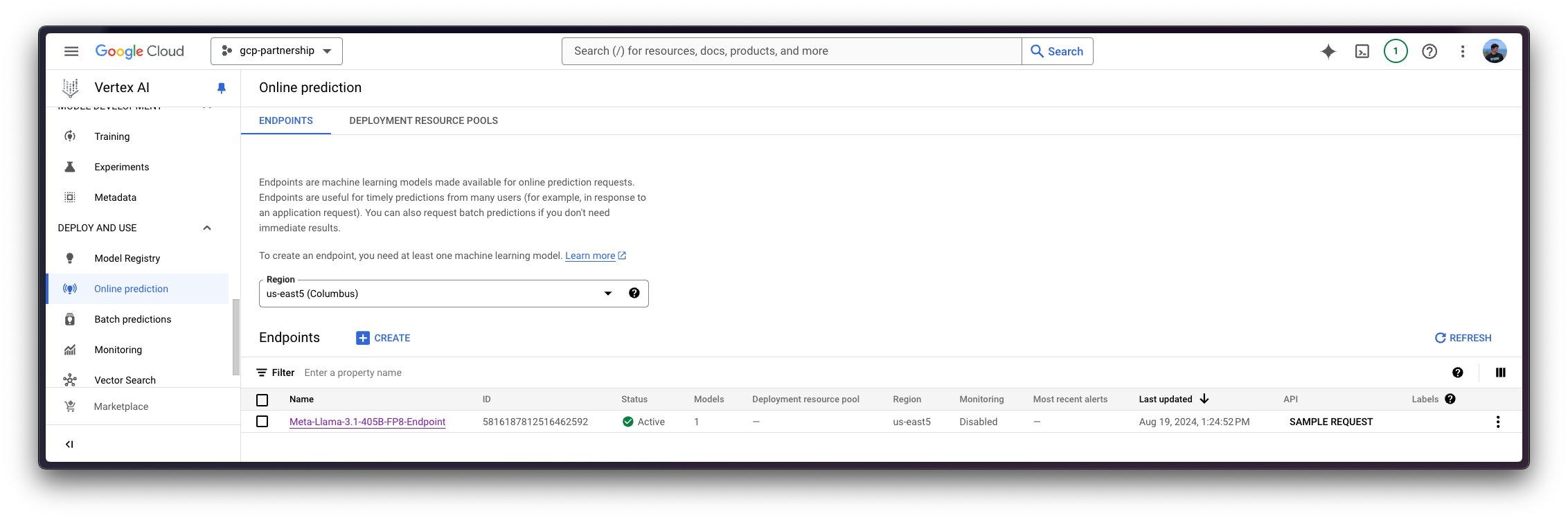

Note that the Meta Llama 3.1 405B deployment on Vertex AI may take around 25-30 minutes to deploy, as it needs to allocate the resources on Google Cloud, download the weights from the Hugging Face Hub (~10 minutes), and load them for inference in TGI (~2 minutes).

Congrats, you already deployed Meta Llama 3.1 405B in your Google Cloud account! 🔥 Now is time to put the model to the test.

5. Run online predictions with Meta Llama 3.1 405B

Vertex AI will expose an online prediction endpoint within the /predict route that is serving the text generation from Text Generation Inference (TGI) DLC, making sure that the I/O data is compliant with Vertex AI payloads (read more about Vertex AI I/O payloads in Vertex AI Documentation - Get online predictions from a custom trained model).

As /generate is the endpoint that is being exposed, you will need to format the messages with the chat template before sending the request to Vertex AI, so it's recommended to install 🤗transformers to use the apply_chat_template method from the PreTrainedTokenizerFast tokenizer instance.

pip install --upgrade --quiet transformers

And then apply the chat template to a conversation using the tokenizer as follows:

import os
from huggingface_hub import get_token
from transformers import AutoTokenizer

tokenizer = AutoTokenizer.from_pretrained(
    "meta-llama/Meta-Llama-3.1-405B-Instruct-FP8",
    token=get_token(),
)

messages = [
    {"role": "system", "content": "You are an assistant that responds as a pirate."},
    {"role": "user", "content": "What's the Theory of Relativity?"},
]
inputs = tokenizer.apply_chat_template(
    messages,
    tokenize=False,
    add_generation_prompt=True,
)

Now you have a string out of the initial conversation messages, formatted using the default chat template for Meta Llama 3.1:

<|begin_of_text|><|start_header_id|>system<|end_header_id|>\n\nYou are an assistant that responds as a pirate.<|eot_id|><|start_header_id|>user<|end_header_id|>\n\nWhat's the Theory of Relativity?<|eot_id|><|start_header_id|>assistant<|end_header_id|>\n\n

Which is what you will be sending within the payload to the deployed Vertex AI Endpoint, as well as the generation arguments as in Consuming Text Generation Inference (TGI) -> Generate.

5.1 Via Python

5.1.1 Within the same session

If you are willing to run the online prediction within the current session i.e. the same one as the one used to deploy the model, you can send requests programmatically via the aiplatform.Endpoint returned as of the aiplatform.Model.deploy method as in the following snippet.

output = deployed_model.predict(
    instances=[
        {
            "inputs": inputs,
            "parameters": {
                "max_new_tokens": 128,
                "do_sample": True,
                "top_p": 0.95,
                "temperature": 0.7,
            },
        },
    ]
)

Producing the following output:

Prediction(predictions=["Yer want ta know about them fancy science things, eh? Alright then, matey, settle yerself down with a pint o' grog and listen close. I be tellin' ye about the Theory o' Relativity, as proposed by that swashbucklin' genius, Albert Einstein.\n\nNow, ye see, Einstein said that time and space be connected like the sea and the wind. Ye can't have one without the other, savvy? And he proposed that how ye see time and space depends on how fast ye be movin' and where ye be standin'. That be called relativity, me"], deployed_model_id='', metadata=None, model_version_id='1', model_resource_name='projects//locations//models/', explanations=None)

5.1.2 From a different session

If the Vertex AI Endpoint was deployed in a different session and you just want to use it, but don't have access to the deployed_model variable returned by the aiplatform.Model.deploy method, then you can also run the following snippet to instantiate the deployed aiplatform.Endpoint via its resource name that can be found either within the Vertex AI Online Prediction UI, from the aiplatform.Endpoint instantiated above, or just replacing the values in projects/{PROJECT_ID}/locations/{LOCATION}/endpoints/{ENDPOINT_ID}.

import os
from google.cloud import aiplatform

aiplatform.init(project=os.getenv("PROJECT_ID"), location=os.getenv("LOCATION"))

endpoint = aiplatform.Endpoint(f"projects/{os.getenv('PROJECT_ID')}/locations/{os.getenv('LOCATION')}/endpoints/{ENDPOINT_ID}")
output = endpoint.predict(
    instances=[
        {
            "inputs": inputs,
            "parameters": {
                "max_new_tokens": 128,
                "do_sample": True,
                "top_p": 0.95,
                "temperature": 0.7,
            },
        },
    ],
)

Producing the following output:

Prediction(predictions=["Yer lookin' fer a treasure trove o' knowledge about them fancy physics, eh? Alright then, matey, settle yerself down with a pint o' grog and listen close, as I spin ye the yarn o' Einstein's Theory o' Relativity.\n\nIt be a tale o' two parts, me hearty: Special Relativity and General Relativity. Now, I know what ye be thinkin': what in blazes be the difference? Well, matey, let me break it down fer ye.\n\nSpecial Relativity be the idea that time and space be connected like the sea and the sky."], deployed_model_id='', metadata=None, model_version_id='1', model_resource_name='projects//locations//models/', explanations=None)

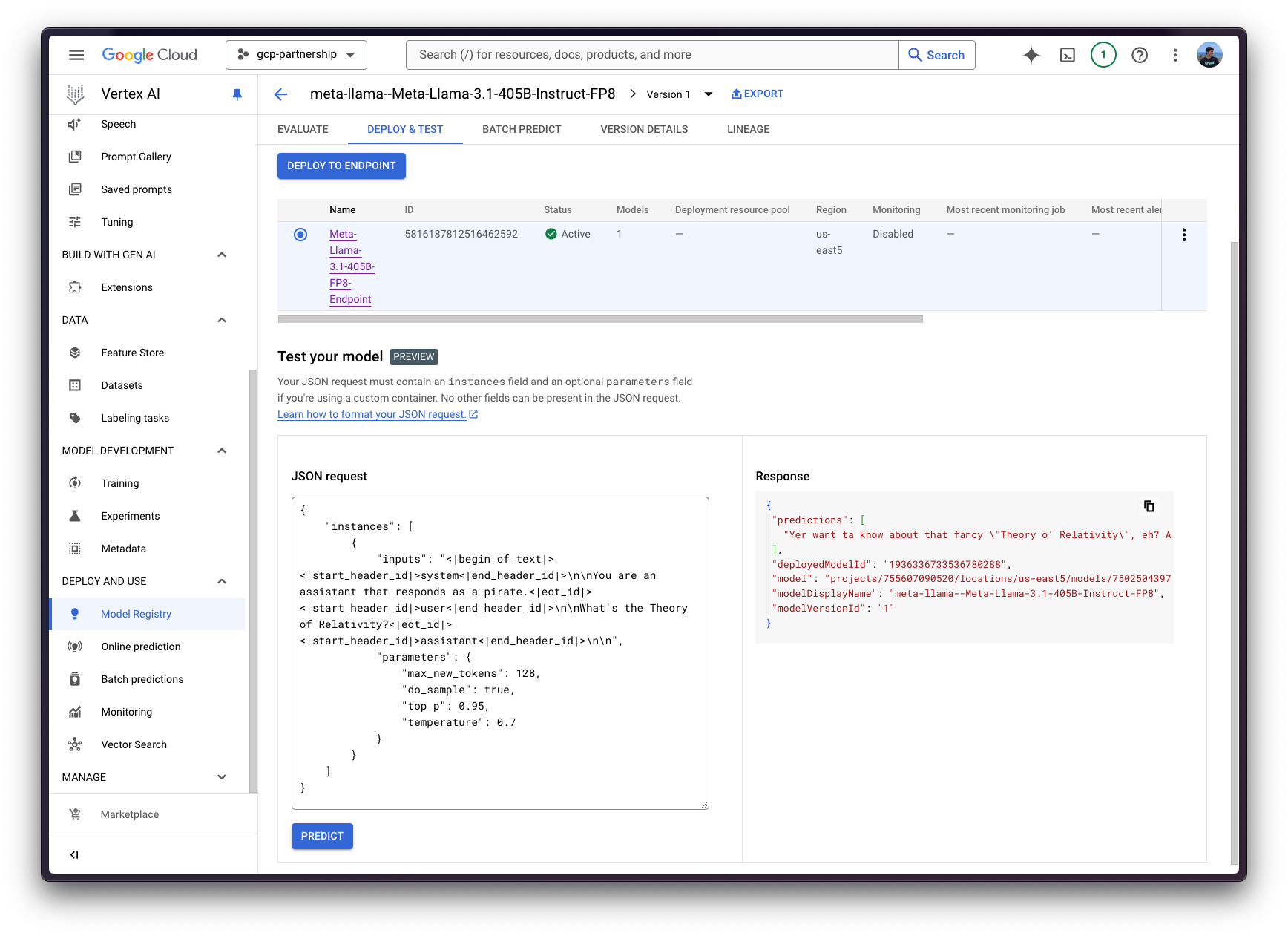

5.2 Via the Vertex AI Online Prediction UI

Alternatively, for testing purposes you can also use the Vertex AI Online Prediction UI, that provides a field that expects the JSON payload formatted according to the Vertex AI specification (as in the examples above) being:

{
    "instances": [
        {
            "inputs": "<|begin_of_text|><|start_header_id|>system<|end_header_id|>\n\nYou are an assistant that responds as a pirate.<|eot_id|><|start_header_id|>user<|end_header_id|>\n\nWhat's the Theory of Relativity?<|eot_id|><|start_header_id|>assistant<|end_header_id|>\n\n",
            "parameters": {
                "max_new_tokens": 128,
                "do_sample": true,
                "top_p": 0.95,
                "temperature": 0.7
            }
        }
    ]
}

So that the output is generated and printed within the UI too.

6. Clean up resources

When you're done, you can release the resources that you've created as follows, to avoid unnecessary costs.

• deployed_model.undeploy_all to undeploy the model from all the endpoints.

• deployed_model.delete to delete the endpoint/s where the model was deployed gracefully, after the undeploy_all method.

• model.delete to delete the model from the registry.

deployed_model.undeploy_all()
deployed_model.delete()
model.delete()

Alternatively, you can also remove those from the Google Cloud Console following the steps:

• Go to Vertex AI in Google Cloud

• Go to Deploy and use -> Online prediction

• Click on the endpoint and then on the deployed model/s to "Undeploy model from endpoint"

• Then go back to the endpoint list and remove the endpoint

• Finally, go to Deploy and use -> Model Registry, and remove the model

Conclusion

That's it! You have already registered and deployed Meta Llama 3.1 405B Instruct FP8 on Google Cloud Vertex AI, then ran online prediction both programmatically and via the Google Cloud Console, and finally cleaned up the resources used to avoid unnecessary costs.

Thanks to the Hugging Face DLCs for Text Generation Inference (TGI), and Google Cloud Vertex AI, deploying a high-performance text generation container for serving Large Language Models (LLMs) has never been easier. And we’re not going to stop here – stay tuned as we enable more experiences to build AI with open models on Google Cloud!
